ControlNet Modular Repeater Adapter 7
Rockwell Automation Publication 1786-IN013F-EN-P - April 2011
The repeater adapter also provides the following:
• Digital re-timing of ControlNet network data
• Power to repeater modules
• One coax channel
• Status indicators
The repeater adapter ships with the following items:
• One removable terminal block (power connector) attached to the
repeater adapter.
• One 75
Ω terminator for terminating an unused port.
• Two DI N rail locks

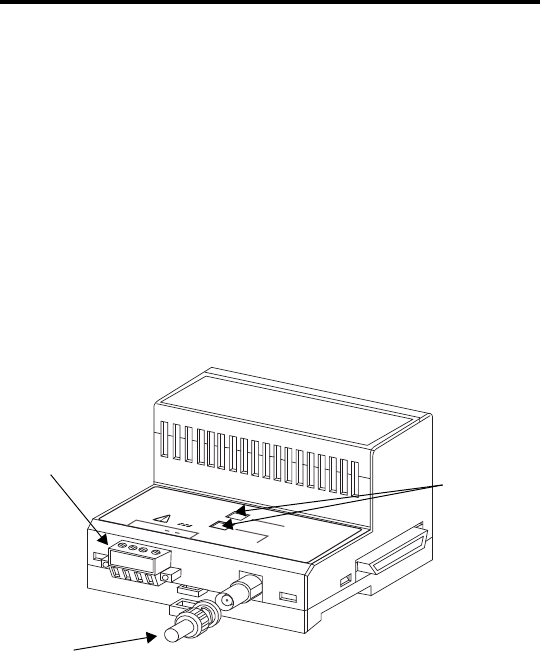

The illustration shows the components that comprise the 1786-RPA/B repeater
adapter module.
COM
COM
REPEATER
ADAPTER
REPEATER
MODULES
24V
+
+
75 Ω Terminator
Status
Indicators
31453-M
Removable
Terminal
B lock
(RTB)
