ControlNet Modular Repeater Adapter 15
Rockwell Automation Publication 1786-IN013F-EN-P - April 2011

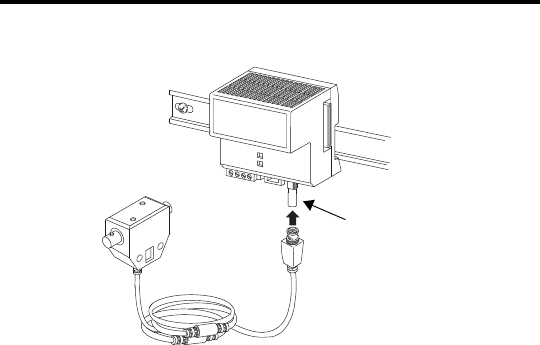

5. Connect the repeater adapter module to the ControlNet network by
connecting the drop line of the coax tap to the BNC connector.
6. Terminate any unused coax ports by connecting a 75 Ω terminator to the
unused BNC connector.
One 75 Ω terminator is shipped with the repeater adapter module.
31459-M
BNC Connector
