12 ControlNet Modular Repeater Adapter
Rockwell Automation Publication 1786-IN013F-EN-P - April 2011
7. Repeat steps 1 through 6 for each of the two DIN rail locks.
8. Tighten the two screws on the DIN rail lock to a torque
of 1.1 N•m (9…11 in•lb).
9. Wire the repeater adapter module.
See Wire the Repeater Adapter Module for details.
10. Terminate any unused coax ports by connecting a 75 Ω terminator to the
unused BNC connector.
One 75 Ω terminator is shipped with the repeater adapter module.
IMPORTANT
For proper operation when using a 1786-RPFRXL/B module with a
1786-RPCD module attached to the same 1786-RPA/B repeater
module, you must install any 1786-RPCD module to the left side
of any 1786-RPFRL or 1786-RPFRXL/B repeater module.
31460-M

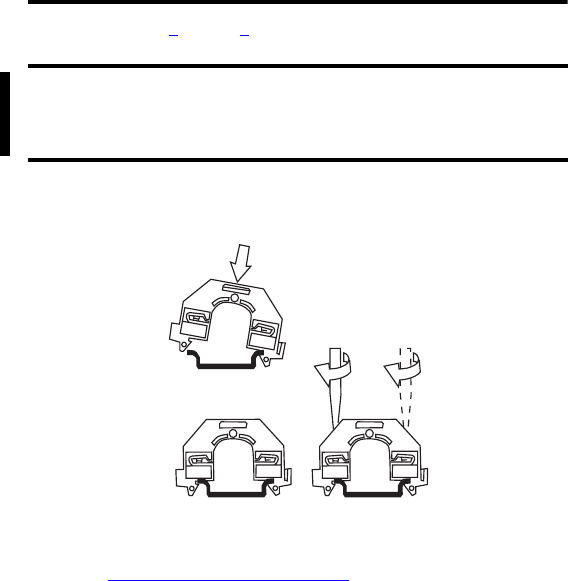

a. Position the DIN rail lock to the DIN rail.
b. Press the DIN rail lock down onto the DIN rail.
c. Tighten the screws.
