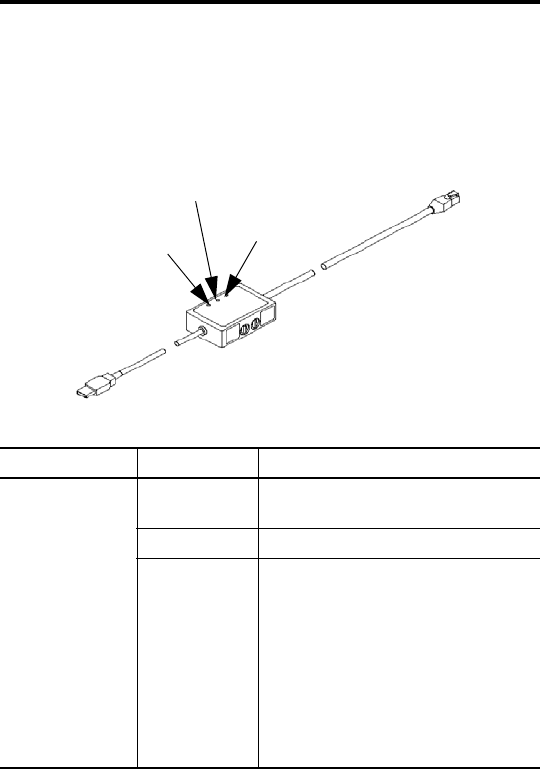

Status Indicators
The following table describes the cable status indicators.
Indicator Status Description
USB Green The cable is configured, but no network traffic
is present.
Flashing green Network traffic is present.
Off Unable to transfer data.
• Disconnected from host.
• In one of the following states:
– default
– powered
– address
– suspend
USB
ControlNet
Network Status
Module
Status
