Installing Your
Programmable Controller
Chapter 4
4-40

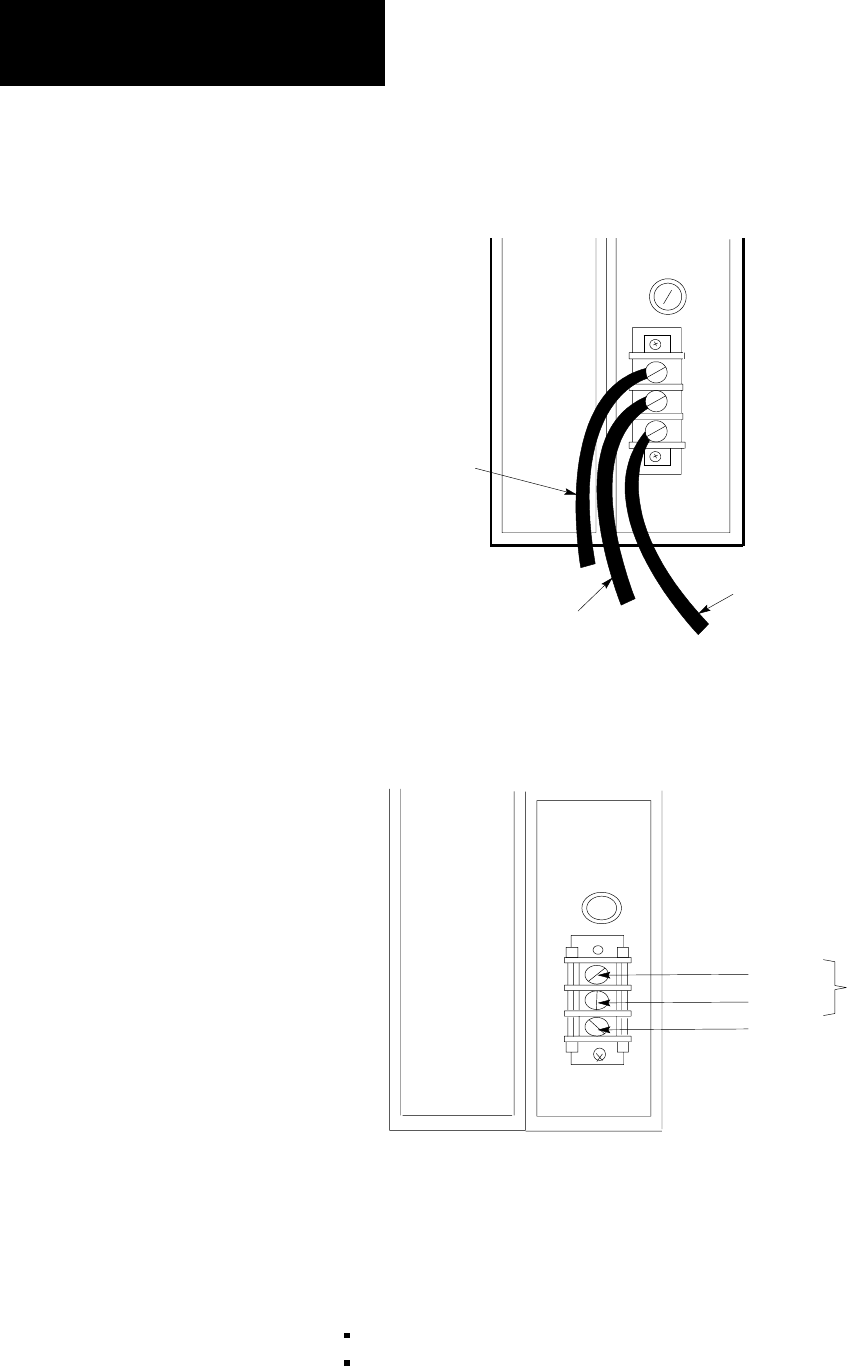

Figure 4.21
Connect
Y
our Power Cable to the ac Power Supply's Terminal Strip
120V
AC
L1
N
GN
1.5A 125V
SLOW BLOW
10321-I
power wire
connects to L1
neutral wire
connects to N
ground bus
connects to GND
Figure 4.22
Connect
Y
our Power Cable to the dc Power Supply'
s Terminal Strip
5A 32V
NORM BLO
24V DC
24V
DC
+DC
COM
GND
10322I
equipment
grounding
conductor
negative
positive
Connecting More Than One Power Supply
When you use two power supplies (Figure 4.23) connect the:
paralleling cable between each power supply
incoming power source to that terminal strips of the power supplies
