Installing Your
Programmable Controller
Chapter 4
4-36

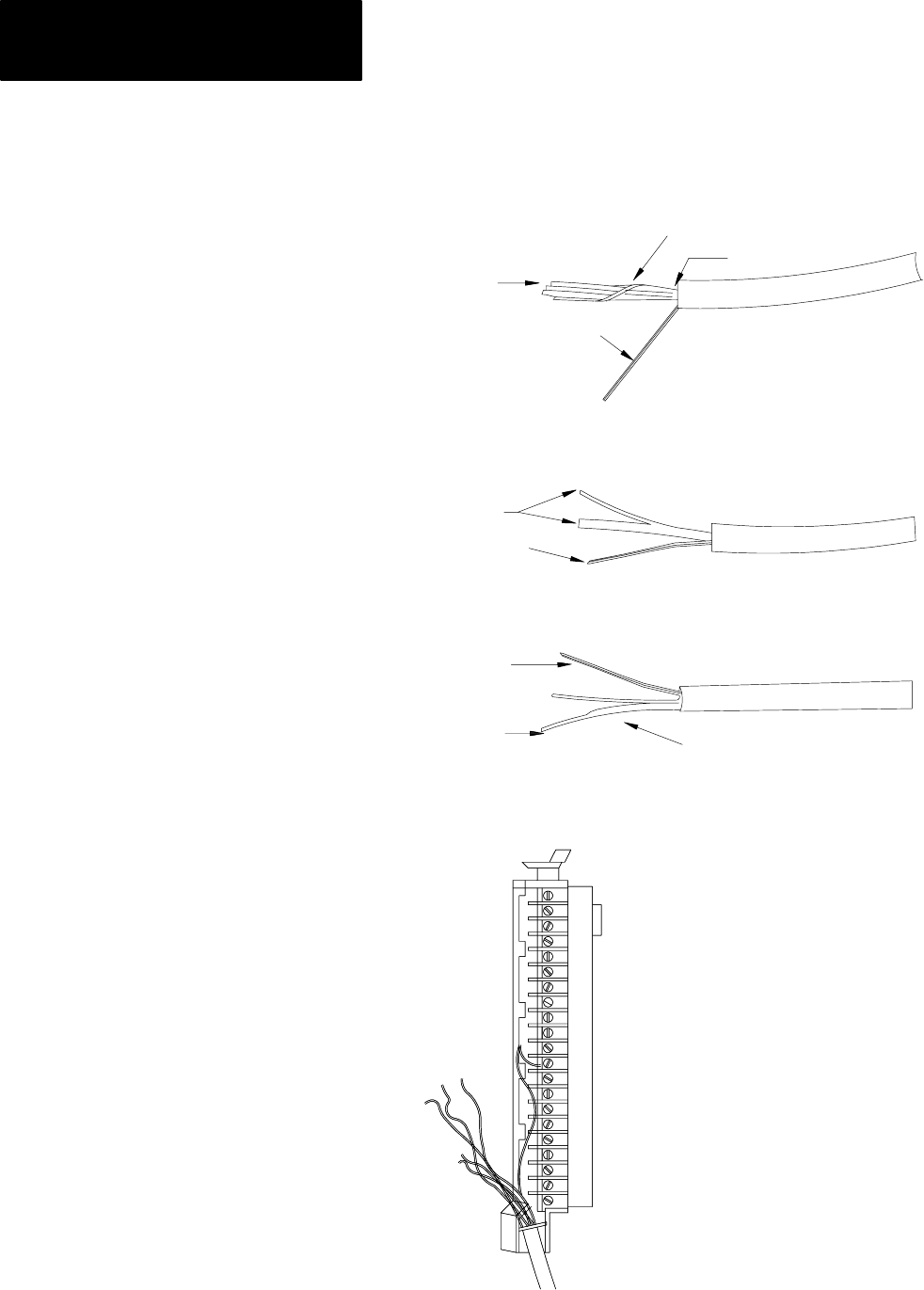

3. Cut the insulation and filler cords.
insulation
filler rods
drain wire
conductor wires
4. Fold the drain wire back to separate it from the conductor wire.
conductor wires
drain wire
5. Strip about 3/8 inch insulation to expose the end of the wire.
drain wire
exposed wire
insulation
6. Loosen a terminal screw and place the wire under the pressure plate
of the terminal screw.
10604I
7. Secure the terminal screw.
