Installing Your
Programmable Controller
Chapter 4
4-35
Multi-conductor shielded cable is Belden type 8761. It consists of twisted
pairs of conductor wires wrapped in two layers of shielding. Our wiring
procedure shows one pair of conductor wires. The required number of I/O
terminals determines the number of conductor wires needed within the
cable for your application. Figure 4.19 shows each component making up
this cable.

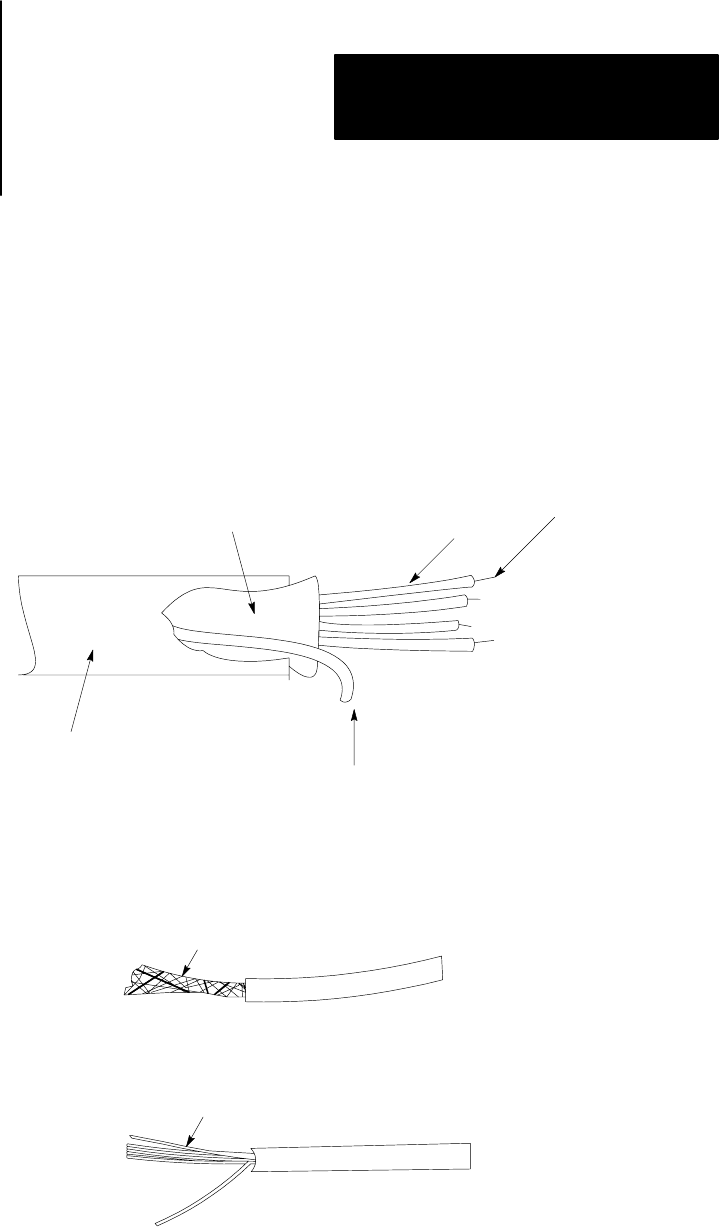

Figure 4.19
A
MultiConductor Cable Contains these Component
10319I
foil shield
outer jacket
drain wire
conductor
insulation
1. Cut the braided shield.
braided shield
2. Remove the foil shield
foil shield
