Installing Your
Programmable Controller
Chapter 4
4-25

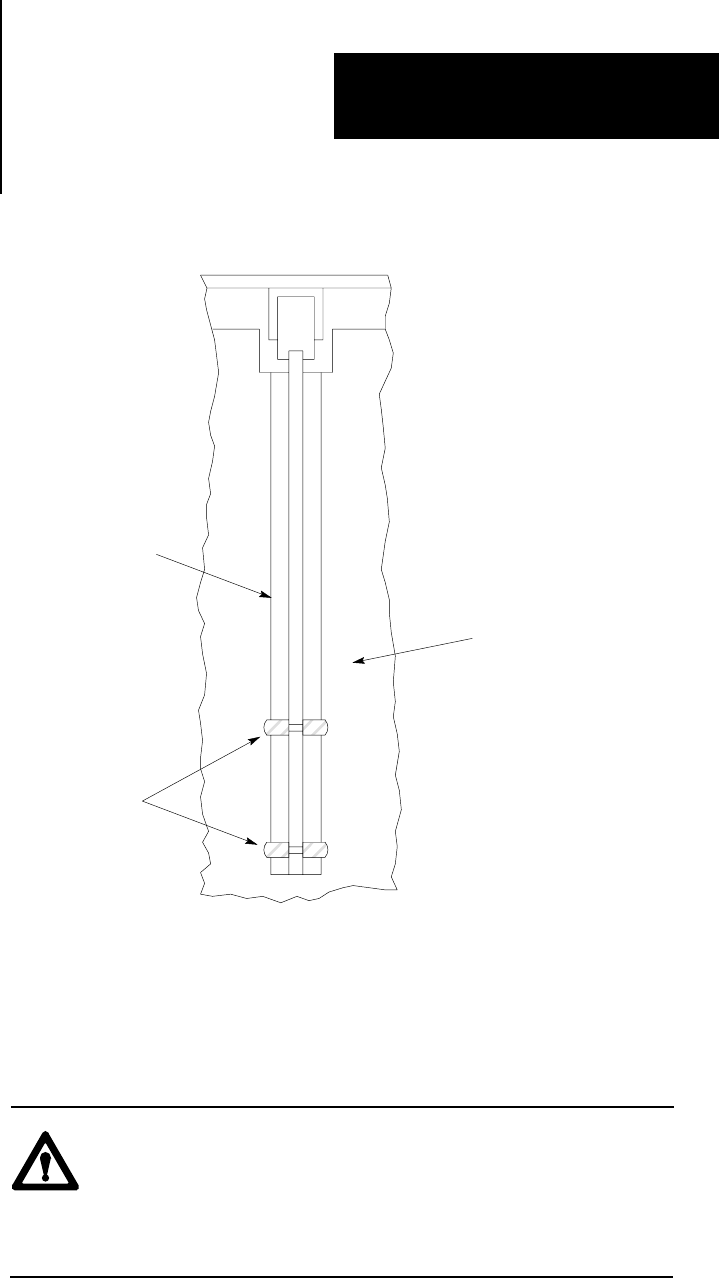

Figure 4.14
Place
the Keying Bands on the Backplane of the I/O Chassis
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
10313-I
I/O chassis
backplane connector
keying bands
(cat. no. 1777RK)
use these numbers
as a guide
Use the numbers to the right of the backplane socket as a guide when
positioning the keying bands.
See the installation instructions for the keying position of each I/O module.
Do not place any I/O modules in the left-most slot. Your processor
goes there.
ATTENTION: If keying bands (in general) are not installed, a
module inserted into a wrong slot could be damaged by
improper voltages connected through the wiring arm. Short
circuits on the I/O module can result from misalignment if
keying bands are not installed.
Snap each field wiring arm onto the lower horizontal bar of the I/O chassis
(Figure 4.15). When I/O modules are in place, the field wiring arm pivots
and connects to the module.
