User Manual Owner's manual

Installing Your
Programmable Controller
Chapter 4
4-10

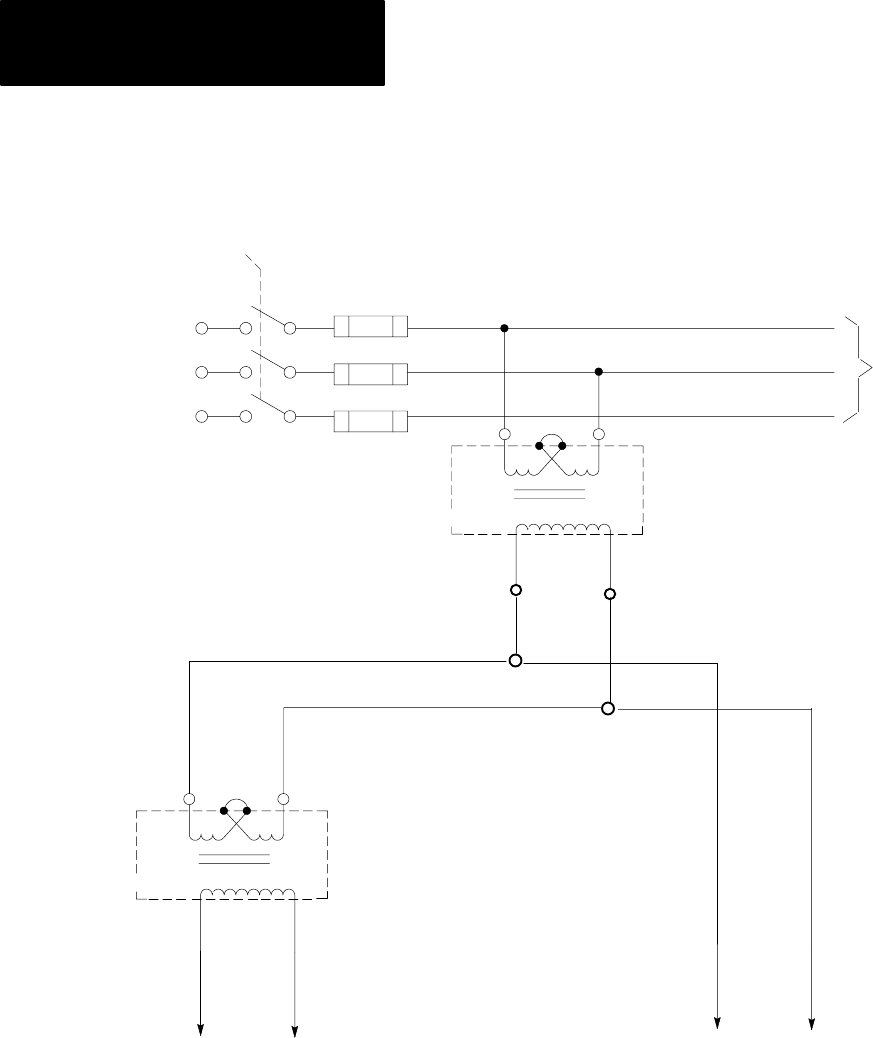

Figure 4.3
Power
Supplies and Input Circuits Receiving Power through a
Separate Transformer
L1
L2
L3
1FU
2FU
3FU
H
L1
L2
L3
H
1
4
H
3
H
2
X
1 X
2
HH
1
4
H
3
H
2
X
1 X
2
10302-I
to motor starters
stepdown
transformer
incoming ac
disc
to power supplies
and input circuits
isolation/constantvoltage
transformer
to output circuits
Ground
Connection
When bringing ac power into the enclosure, do not connect its raceway
through an equipment-grounding conductor to the ground bus on the
back-panel. The raceway should be grounded elsewhere. Connecting the
raceway to the ground bus would cause a ground loop.
