The word SEQUENCER appears in the lower left hand corner of the screen.
SEQ
Sequencers
Chapter 21
21-6
The cursor moves to the digit 4 and DATA TABLE SIZE changes to 512.
This gives you a 512 word data table. After you adjust the data table press
CANCEL COMMAND. You are now ready to insert this program.

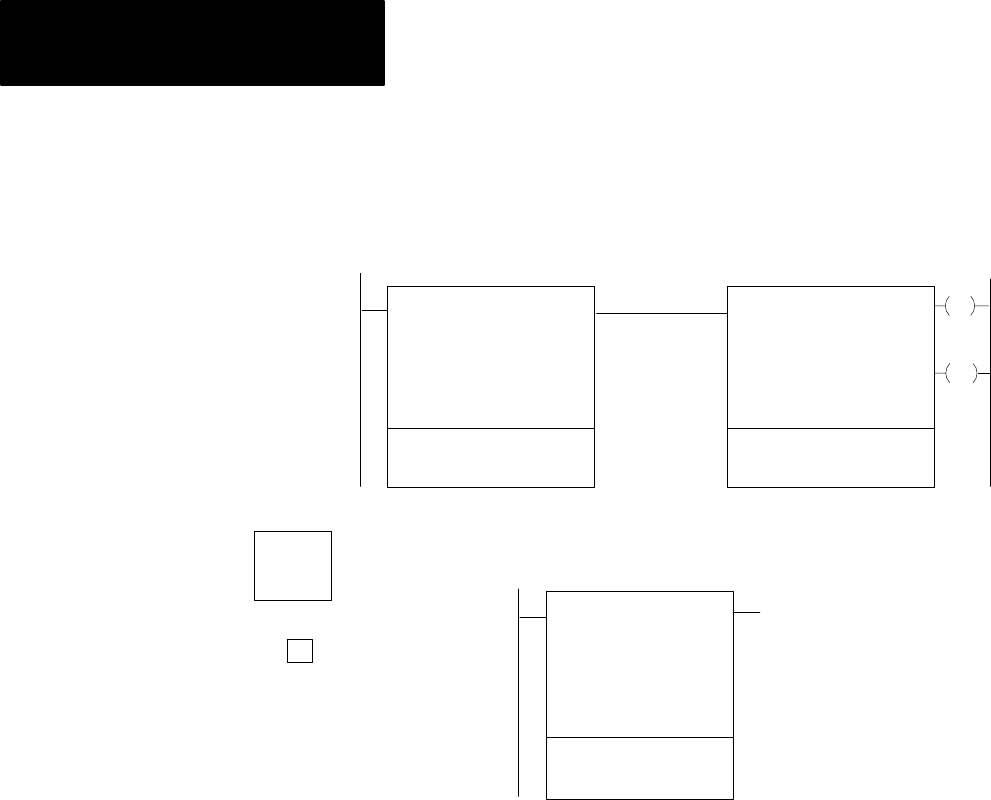

SEQUENCER INPUT
COUNTER ADDR:
CURRENT STEP:
SEQ LENGTH:
WORDS PER STEP:
FILE:
006
2
413
MASK:
071
INPUT WORDS
2:
3: 4:
200
001
400-
070-
1: 110
201
SEQUENCER OUTPUT
COUNTER ADDR:
CURRENT STEP:
SEQ LENGTH:
WORDS PER STEP:
FILE:
006
2
613
MASK:
076
OUTPUT WORDS
2:
3: 4:
200
001
600-
075-
1: 012
013
EN
DN
200
17
200
15
SEQUENCER INPUT
COUNTER ADDR:
CURRENT STEP:
SEQ LENGTH:
WORDS PER STEP:
FILE:
001
1
110
MASK:
010
INPUT WORDS
2:
3: 4:
030
000
110-
010-
1: 010
1
Notice that the words SEQUENCER INPUT are flashing, the cursor is on
the first digit of counter address, and the default values are shown.
Insert the following values. Your cursor will move automatically
throughout the sequencer instruction. The values are:
COUNTER ADDR: 200
CURRENT STEP: 001
SEQ LENGTH: 006
WORDS PER STEP: 2
FILE: 400
MASK: 070
INPUT WORDS: 1: 110
2: 201
