Data Transfer File Instruction
Chapter 19
19-8
007
EN
FILE TO FILE MOVE
COUNTER ADDR:
POSITION:
FILE LENGTH:
FILE R:
FILE A:
001
007
400- 406
500- 506
200
200
17
RATE PER SCAN:
007
DN
200
15

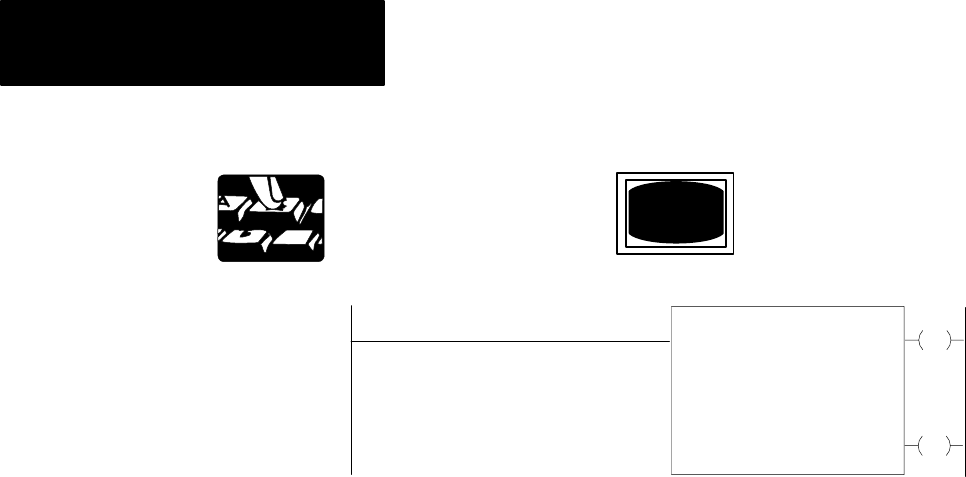

You can now proceed to add data to your file. Position your cursor on the
words file to file move. Use the arrow keys to move your cursor. For this
example, we will use the hexadecimal data monitor display.
The screen does not change.
1
HEXDECIMAL DATA MONITOR
FILE TO FILE MOVE
POSITION: 001
COUNTER ADDR:
FILE A:
200
400406
FILE LENGTH:
FILE R:
007
500 506
POSITION FILE A DATA FILE R DATA
001
002
003
004
005
006
007
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
DATA: 0000
We will now enter data in position 001 of file A.
1257
HEXDECIMAL DATA MONITOR
FILE TO FILE MOVE
POSITION: 001
COUNTER ADDR:
FILE A:
200
400406
FILE LENGTH:
FILE R:
007
500 506
POSITION FILE A DATA FILE R DATA
001
002
003
004
005
006
007
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
DATA: 1257
This enters data into the command buffer.
