Data Transfer File Instruction
Chapter 19
19-6
Keystrokes

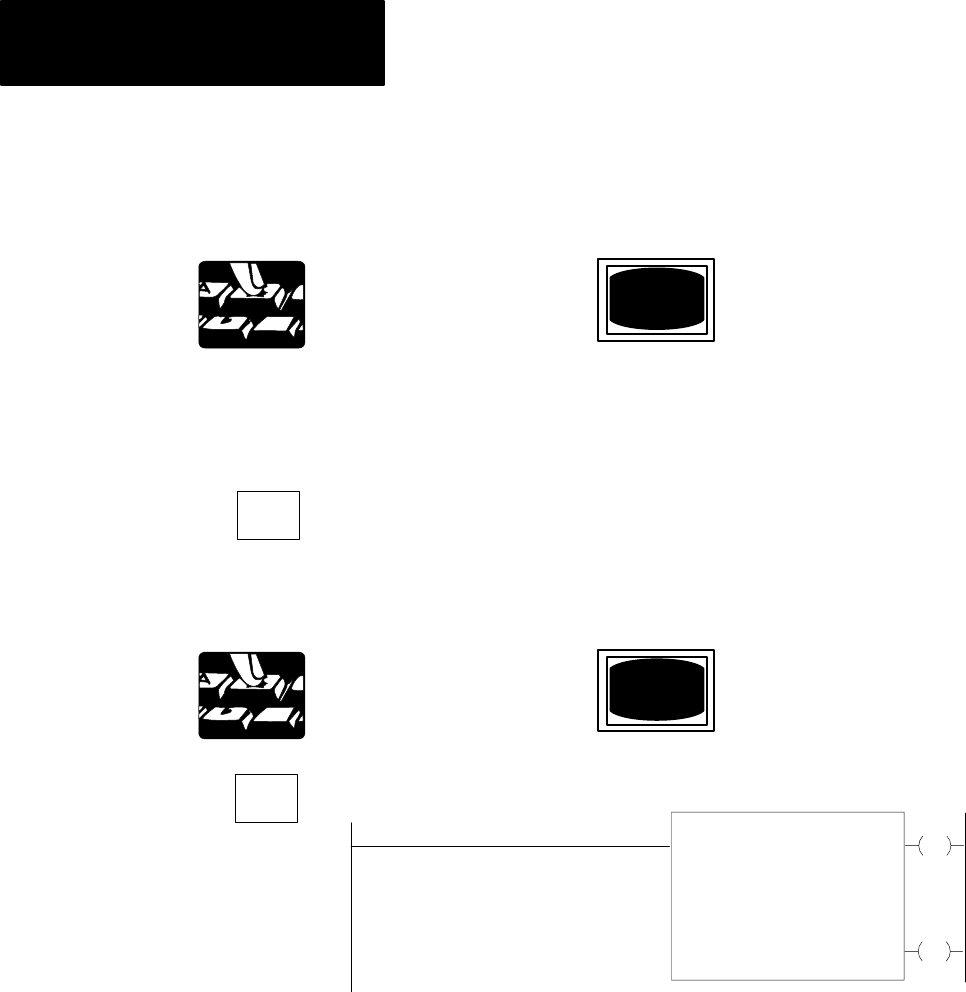

Enter a File-to-File Move instruction by performing the following steps.
Block Transfer 0 appears in the lower left corner of the screen, above the
processor’s current programming mode.
BLOCK
XFER
0
The word SEARCH appears in the lower left corner of the Industrial
Terminal Screen.
SEARCH
Puts the processor in the remote mode.
592
The word FILE appears in the lower left corner of the Industrial
Terminal Screen.
10
EN
FILE TO FILE MOVE
COUNTER ADDR:
POSITION:
FILE LENGTH:
FILE R:
FILE A:
001
001
110- 110
110- 110
030
030
17
RATE PER SCAN:
001
DN
030
15
FILE
Notice that the cursor is now on the first digit of the counter address. Also,
the display shows all default values.
You must expand the data table to insert the following values. Follow the
procedure in chapter 7. Then, your cursor will move automatically through
the File-To-File Move instruction. The instructions values are:
COUNTER ADDR 200
POSITION 001
FILE LENGTH 007
FILE A 400
FILE R 500
RATE PER SCAN 007
