EAF Logarithmic, Trigonometric
and FIFO Instructions
Chapter 15
15-4
Data
T
able Format After Address Entry
Be careful not to select operand (data) and result addresses so that
they overlap.

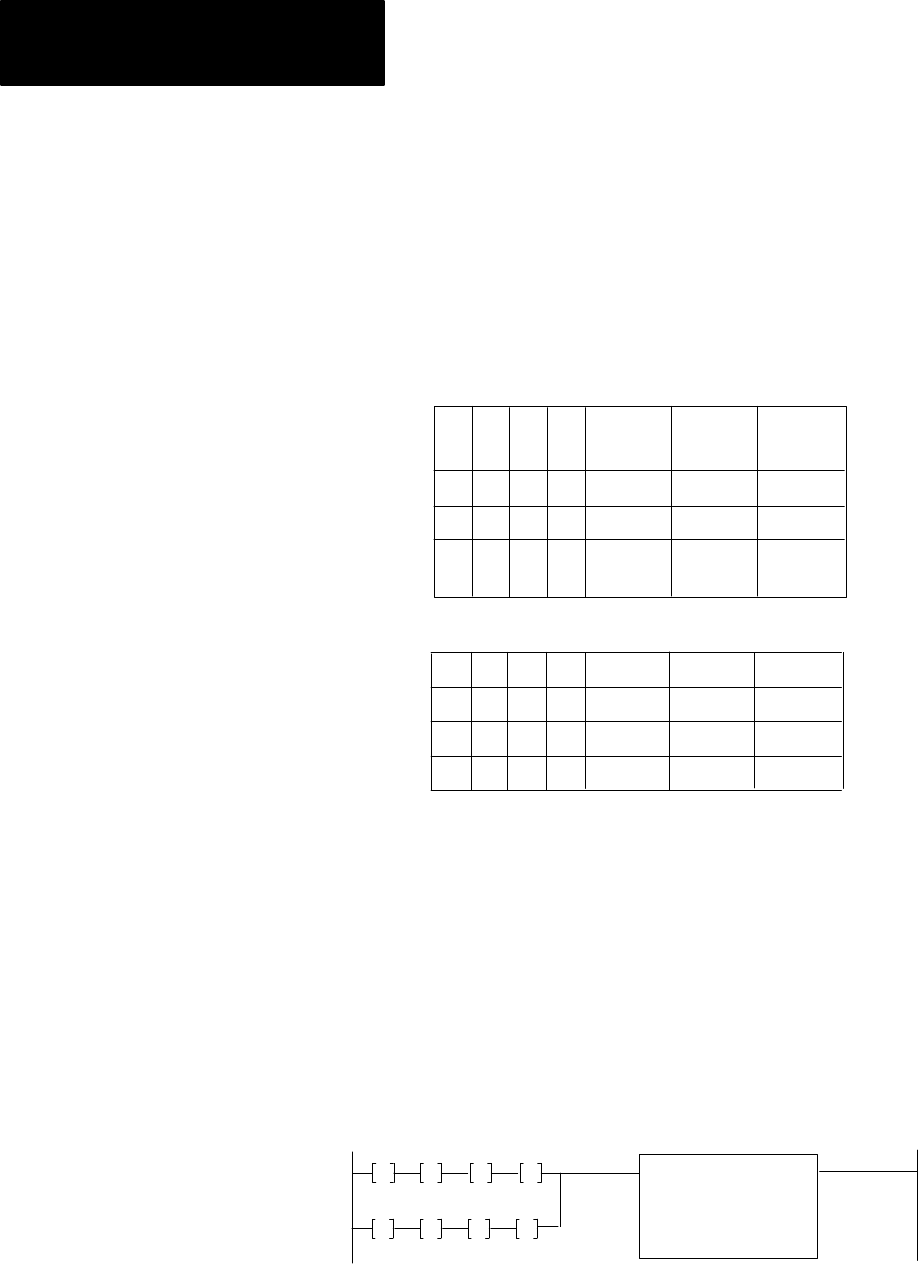

Figure 15.2
EAF
W
ord Format in the Data T
able After Address Entry
17 16 15 14 10 7 4 3
Data
0
S Digit 1 Digit 2 Digit 3
Digit 4
Digit 7
Digit 10
Digit 5
Digit 8
Digit 11
Digit 6
Digit 9
Digit 12
Operand
MSD
LSD
040
041
042
043
Result
Address
Result
060
061
062
063
10364-I
13
X S 0 O/U
Address
Entry
and Display of Input and Result V
alues
Figure 15.3 shows one method for displaying operand (data) values and the
result values of an EAF, not using the default address (010) as the Data
Address inside the EAF instruction. The first branch contains the Result.
The second branch contains the Operand. Addresses of the Operand do not
have to be consecutive (if the Data Address in the instruction is 010).
Figure 15.3
EAF
Operand and Result Rung
060
EXECUTE AUX
FUNCTION
FUNCTION NUMBER:
DATA ADDR:
RESULT ADDR:
05
040
060
G
061
G
062
000
G
063
000
G
040
000
G
041
144
G
042
000
G
043
000
G
000 012
