Subtraction

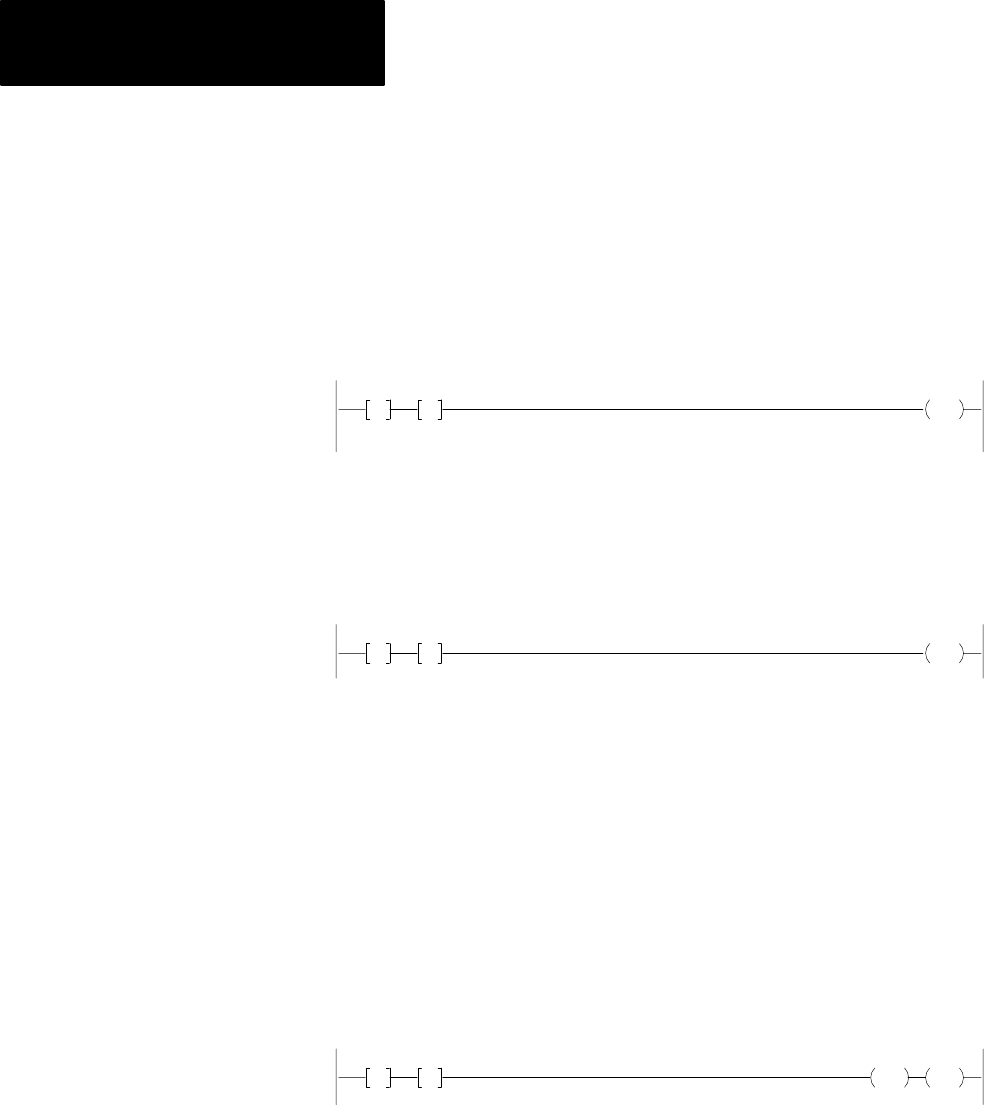

Reports the difference between two Get values immediately preceding the
subtraction instruction. The second get word value is subtracted from the
first get word value. Programmed in the output position of the ladder
diagram rung. The difference is stored in the subtract instruction
word address.
072
095
G
070
134
G
071
039
-
When the difference is a negative number, the underflow bit (bit 16) in the
subtract instruction word is set. When your processor is in the Run, Test or
Run/Program mode, the negative sign is displayed on the industrial
terminal screen preceding the difference.
072
-034
G
070
100
G
071
134
-
Important: Use only positive values. If you use a negative BCD value
for subsequent operation, inaccurate results could occur.
Multiplication
Reports the product of two values stored in the Get instruction words
immediately preceding the multiply instruction. Programmed in the output
position of the ladder diagram. The product is stored in two multiplication
instruction words. The first word contains the most significant digit and
the second word contains the least significant digit. If the product is less
than six digits, leading zeros appear in the product.
052
503
G
130
123
G
131
061
X
051
007
X
Important: Use consecutive word addresses for the two addresses of the
multiply instruction.
