Data Manipulatuion and
Comparison Instructions
Chapter 12
12-4
If the rung condition becomes:
True If there is equality.
False If there is no equality.
Keystrokes
Enter an Equal To instruction by performing the following steps.
1. Press -[=]-.
2. Enter <address>.
3. Enter <reference value> if appropriate.
Removing
an Equal T o Instruction
Remove an Equal To instruction by performing the following steps.
1. Position the cursor over the Equal To instruction you are going
to remove.
2. Press [Remove] -[=]-.
Editing
a Completed Rung
Edit an Equal To instruction by performing the following steps.
1. Position the cursor over the Equal To instruction.
2. Press -[=]- or any other appropriate instruction type key.
3. Enter <address>.
4. Enter <reference value> if appropriate.
The Less Than instruction compares the data in your specified address with
the data stored at another address in memory. It determines the rung
condition. A Less Than instruction compares only the lower 12 bits to the
immediately preceding Get instruction.

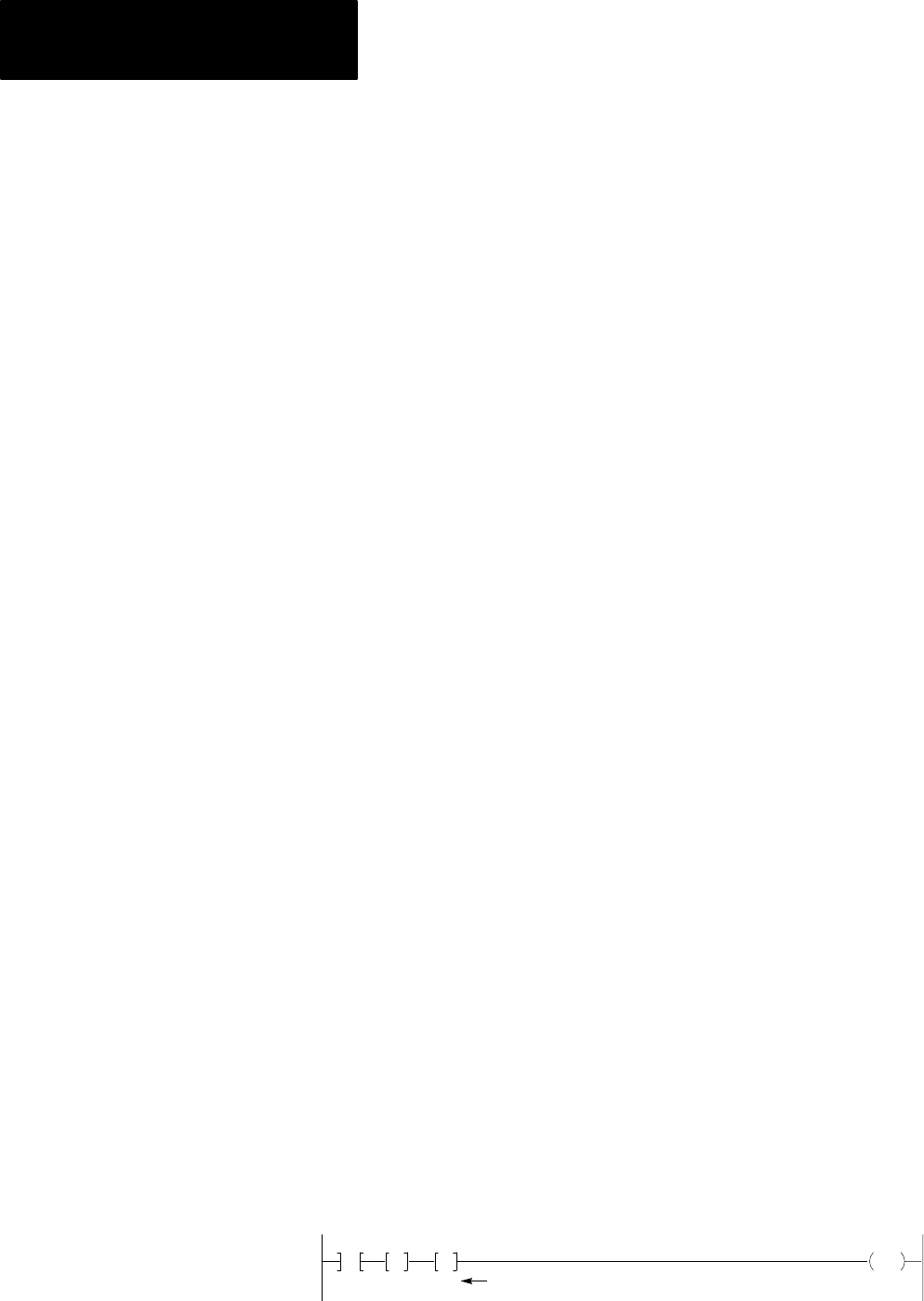

It is programmed after the Get instruction in the condition side of the
ladder diagram rung.
120
01
010
02
G
030
YYY
reference value
=
037
654
Less Than
