Program Control Instructions
Chapter 10
10-7

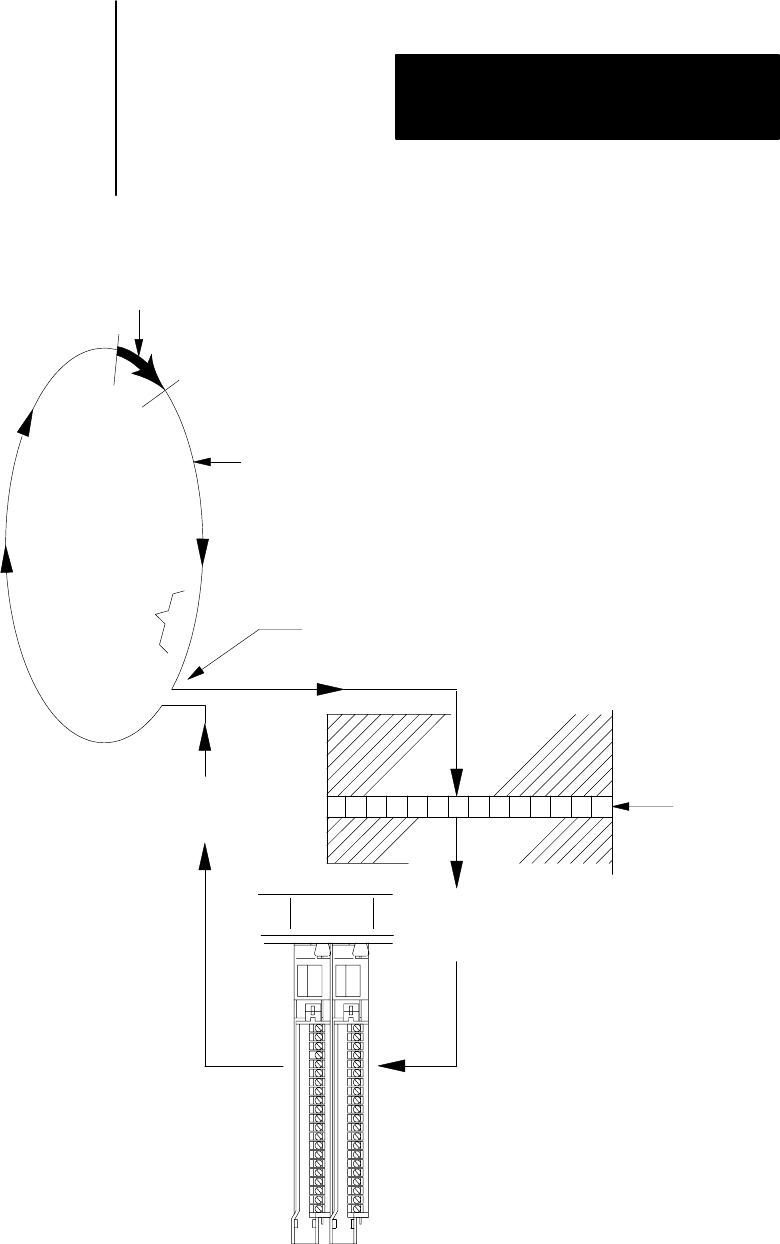

Figure 10.4
Immediate
Output Instruction
10130
I/O Scan
Program Scan
module group
(output)
writes all 16 bits from one
output image table word to
one module group
control bits of word
014 here in program
returns to
program scan
word 014
Immediate Output instruction
interrupts program scan
2slot
I/O group
Keystrokes
Enter an Immediate Input or Immediate Output instruction by performing
the following steps.
1. Press either -[I]- or -[IOT]-.
2. Enter <address>.
