RelayLike Instructions
Chapter 9
9-4

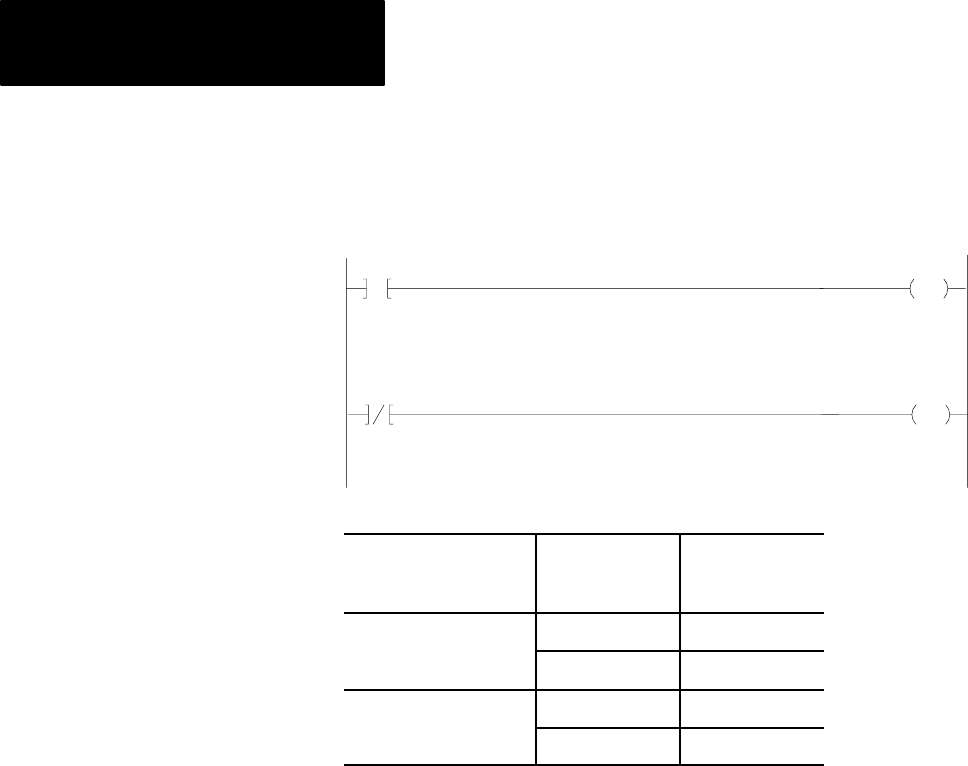

The Examine On (–] [–) and Examine Off (–]/[–) instructions tell the
processor to examine a bit at a specified data table location.
112
04
112
05
012
13
Bit Examining
Examine On
Bit Examining
Examine Off
012
14
This Instruction: Becomes: When the
Corresponding
Bit Is:
EXAMINE ON true set
false reset
EXAMINE OFF true reset
false set
Keystrokes
Enter an Examine On or Examine Off instruction by performing the
following steps.
1. Press either –] [– or –]/[– as required.
2. Enter <bit address>.
Removing
the Examine On or Examine Off Instruction
Remove an Examine On or a Examine Off instruction by performing the
following steps.
1. Position the cursor over the Examine On or Examine Off instruction
you want to remove.
2. Press [Remove] –] [– or –]/[–.
Examine On and Examine Off
