DeviceNet Seminar Installation Instructions
22
Publication
17875.5 - December 1995

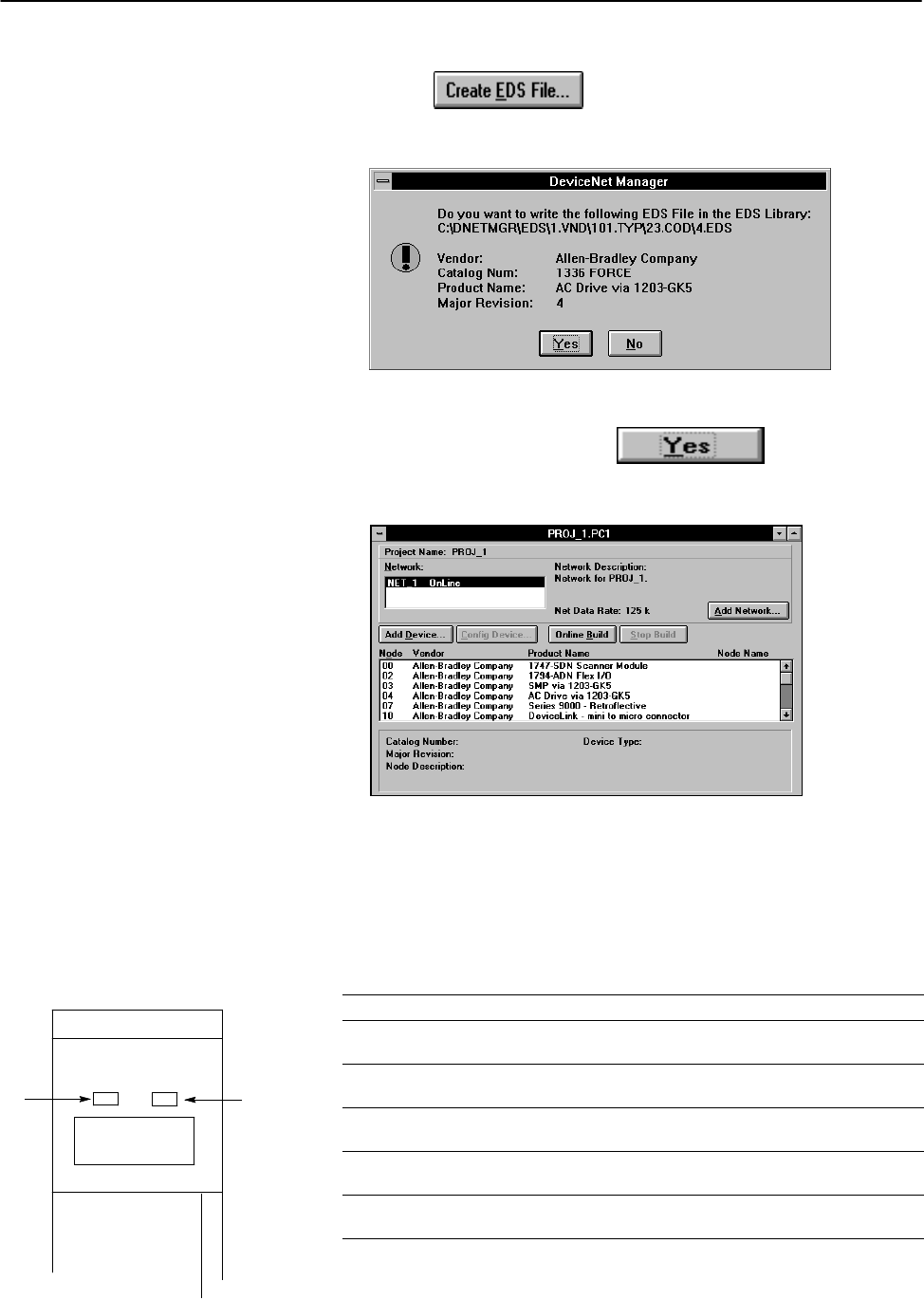

7. To save the EDS file you’ve just created,
choose
You see this warning message.
8. To save the EDS file, choose
You return to this screen.
9. Complete steps 1 through 8 for node 03, (SMP-3 overload relay).
The bicolor (green/red) module status indicator (MODULE)
displays module status. It indicates whether the module has power
and is functioning properly.
If the indicator is Then Take this action
Off There is no power applied to
the module.
Apply power.
Green The module is operating in
normal condition.
Do nothing.
Flashing Green The module is not
configured.
Configure the module.
Flashing Red There is an invalid
configuration.
Check configuration setup.
Red The module has an
unrecoverable fault.
Replace the module.
top part of module
DeviceNet
STATUS
MODULE NET
ADDRESS/ERROR
module
status
indicator
network
status
indicator
Troubleshooting Your
1747SDN Scanner Module
