DeviceNet Seminar Installation Instructions
21
Publication
17875.5 - December 1995
4. To create an EDS file, choose

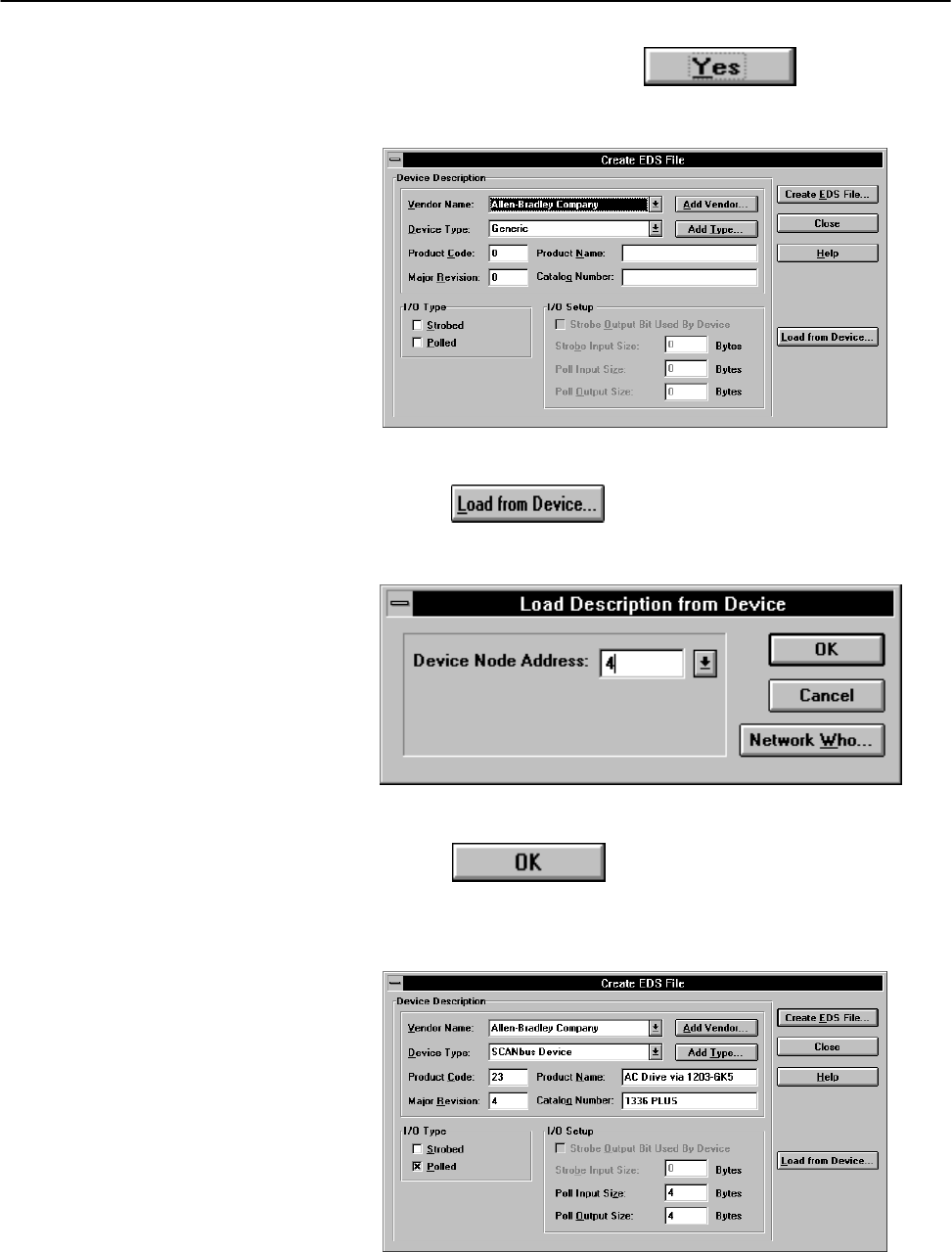

You see this screen.
5. Choose
You see this screen.
6. Choose
Once the EDS files are uploaded, the Create EDS File screen is
updated with the selected device’s information.
We recommend you enter the catalog number.
