DeviceNet Seminar Installation Instructions
20
Publication
17875.5 - December 1995

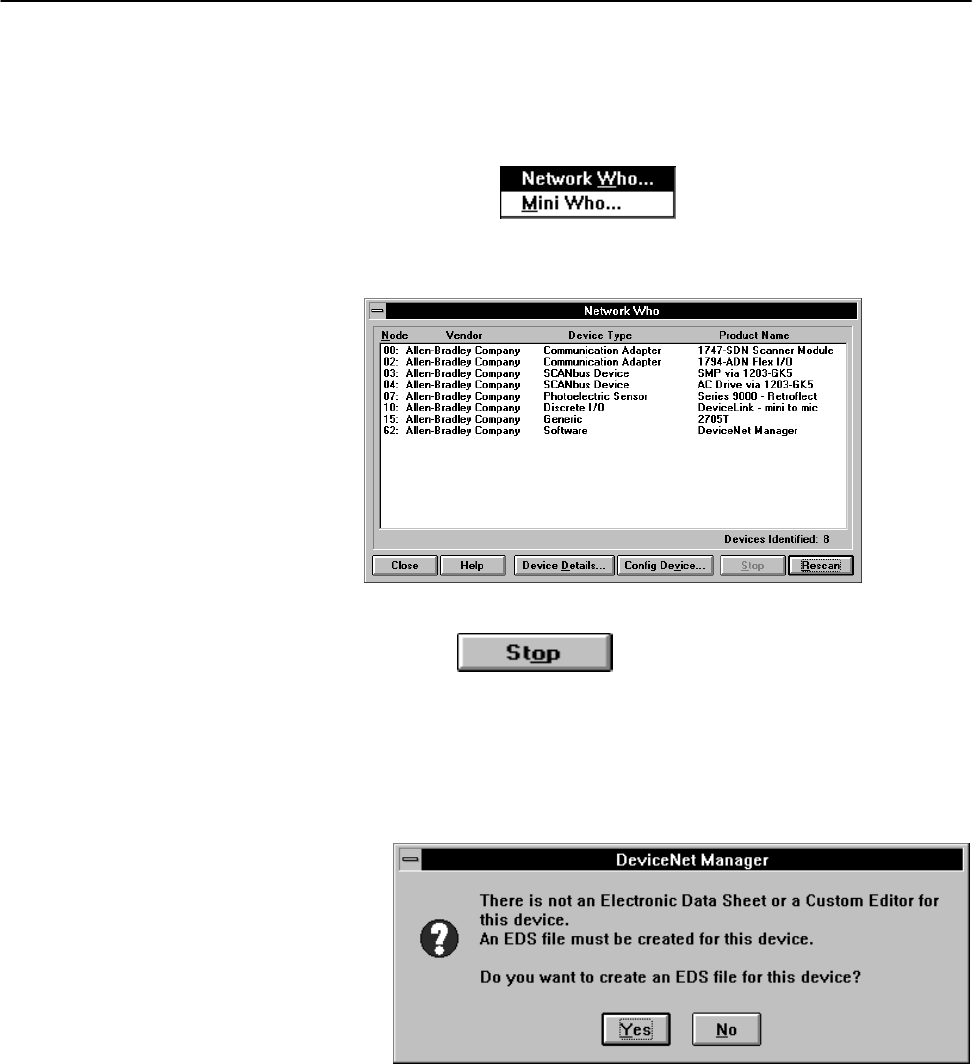

Follow these steps to test your online connection.
1. From the Who menu, choose Network Who.
Who
You see this screen.
2. Once nodes 00, 02, 03, 04, 07, 10, 15, and 62 are listed,
choose
Important: You must complete steps 3 through 8 for each
lab station.
3. Double-click on node 04.
You see this screen.
Testing the
RS232 Module
