DeviceNet Seminar Installation Instructions 19
Publication 17875.5 - December 1995

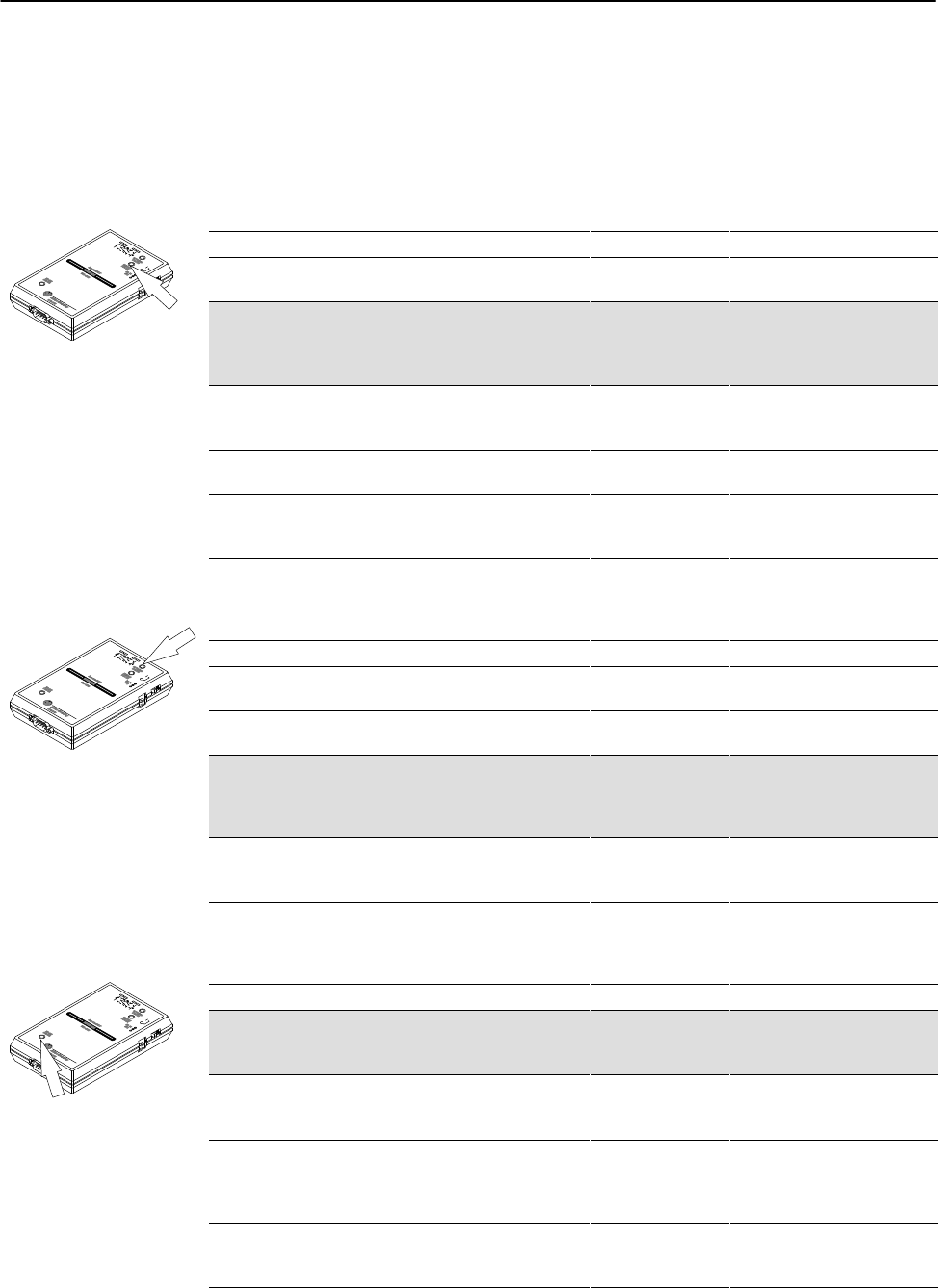

The three status indicators on the RS-232 module give you
information about your network and its connections. Conditions for
this lab should be as indicated in the shaded areas of the
following tables.
Module Status Indicator
If the indicator is Then Which indicates Take this action
Off There is no power being supplied to
the module.
There is no power. Apply power to the module.
Solid green The module is operating normally. The module is on
line and a commu
nication rate
is detected.
Do nothing.
Blinking green The module is operating normally
awaiting for initialization from
the host.
The module is in
autobaud mode.
Initialize the module.
Solid red There is an unrecoverable fault in
the module.
The module has a
critical fault.
Replace the module.
Blinking red There is a recoverable fault in
the module.
The module has a
recoverable fault.
Reconfigure, reset, and per
form the error recovery steps
to the module.
Network Status Indicator
If the indicator is Then Which indicates Take this action
Off The module is offline. The DeviceNet
network is offline.
Go online.
Solid green The module is online and communi
cating over the DeviceNet network.
The DeviceNet
network is online.
Do nothing.
Blinking green The module is online. The DeviceNet
network is online
but not communi
cating.
Do nothing.
Solid red The link between the module and
the DeviceNet network has failed.
There is a critical
error in the
DeviceNet link.
Check your node addresses
and network configurations for
an error.
RS232 Status Indicator
If the indicator is Then Which indicates Take this action
Off There is no activity and the
DeviceNet link is OK.
There is no com
munication over the
DeviceNet network.
Do nothing.
Blinking green There is activity and the DeviceNet
link is OK.
Data is being trans
mitted or received
by the module.
Do nothing.
Solid red There is a critical fault in
the module.
The device is
incapable of com
municating on the
DeviceNet network.
Attempt to go online again.
Blinking red There is a recoverable fault in
the module.
The module has
detected a
noncritical fault.
Check your communication
rate and parity.
Checking the RS232
Module Diagnostics
