DeviceNet Seminar Installation Instructions
16
Publication
17875.5 - December 1995

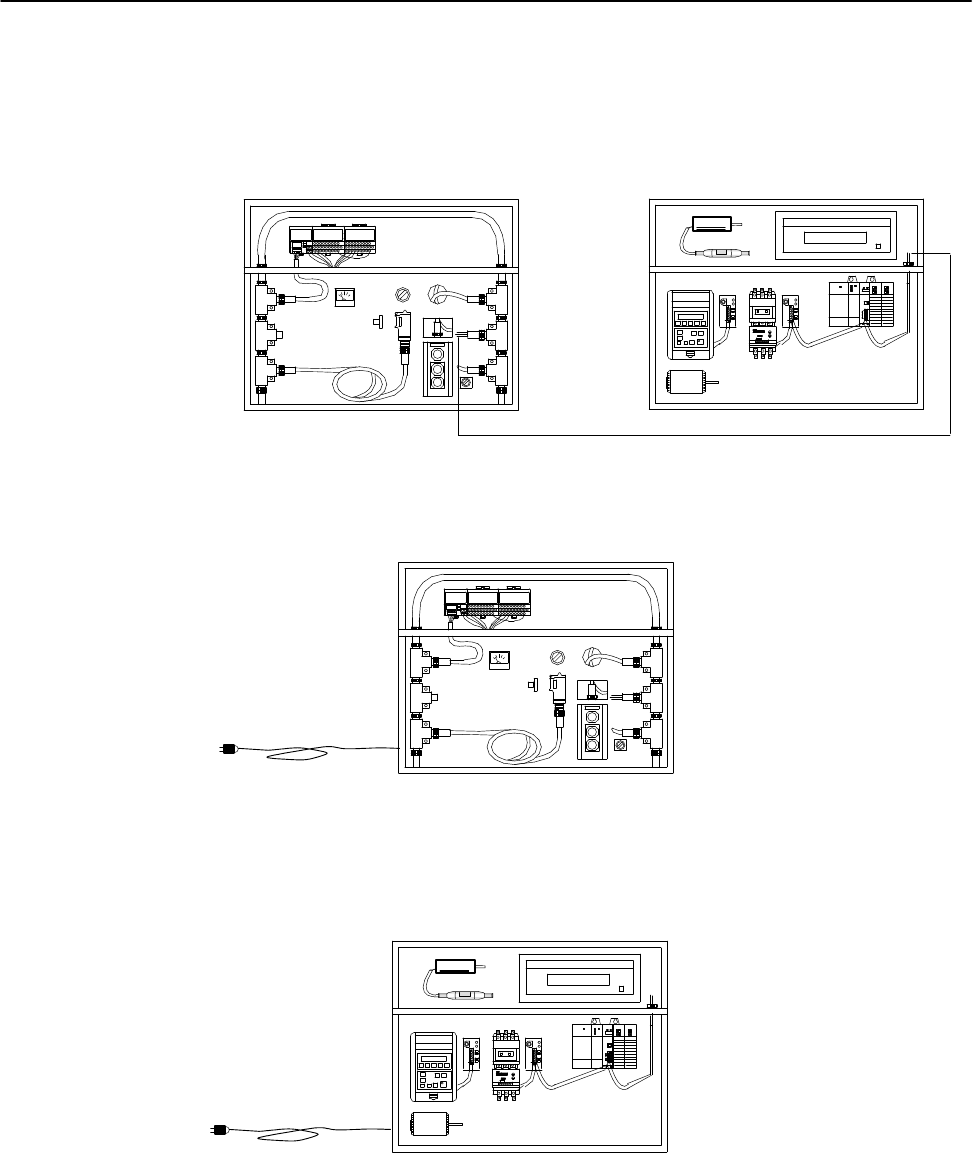

Follow these steps to connect your DeviceNet demo boxes together.
1. Connect the drop line from the top of box 2 into the second
T-Port tap on the right of box 1.
drop line
Demo Box 1 Demo Box 2
2. Plug one end of the power cord into the left side of box 1.
Demo Box 1
3. Plug the other end of the power cord into a 110V or
220V ac outlet.
4. Plug one end of the other power cord into the back of box 2.
Demo Box 2
5. Plug the other end of the power cord into a 110V or
220V ac outlet.
Connecting the Boxes
