Installation Instructions Manual
AC (120/220V) 16A Power Supply 9
&%! ) #

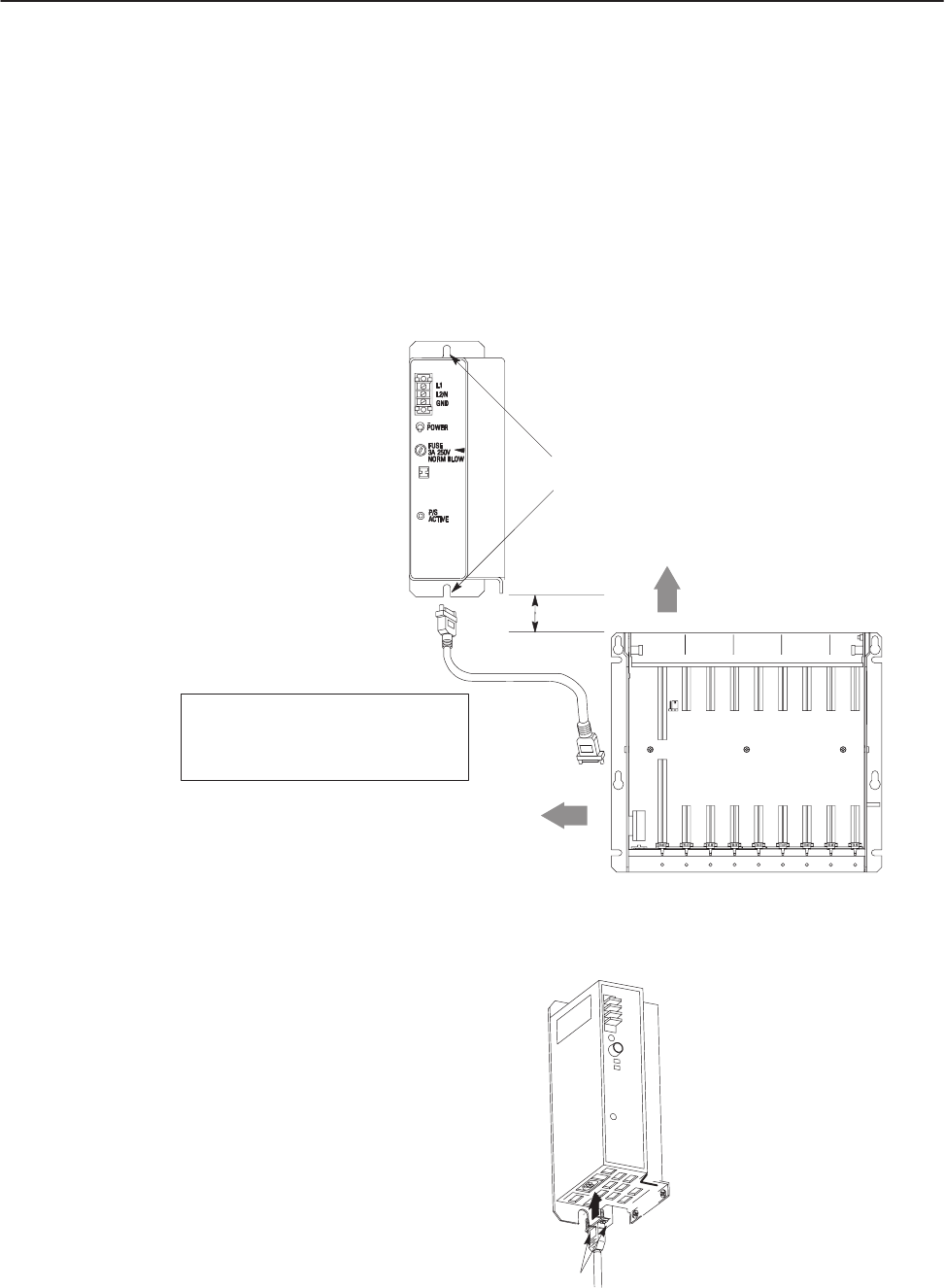

Mounting the Power Supply Separately
When mounted separately, the power supply may be mounted above
or next to the I/O chassis. It may not be mounted below, since it is
necessary to allow convection cooling of both the power supply and
the I/O chassis. A minimum vertical distance of 6 inches (15.2cm)
should be maintained.
1. Mount the power supply vertically, above and within the specified
cable-feet (for your cable) of the D-shell connector on the I/O
chassis.
Allow for a generous bend of the
1771ĆCP2 or 1771ĆCP3 cable to reduce
stress on the connectors mounted on
the chassis and the power supply.
$ % ## !& % $ ! %
"!'# $&""( %! !& % % %! "
)
)
I
O
2. Connect one end of the power cable to the D-shell connector
located on the bottom of the power supply and tighten the
connector screws until snug, plus 1/4 turn.
!# )
)
! %!# $#'$
)
