Installation Instructions Manual

P/S
Active
12627ĆI
I
O
AC (120/220V) 16A Power Supply12
Publication 1771ĆIN056B EN-P - December 2001

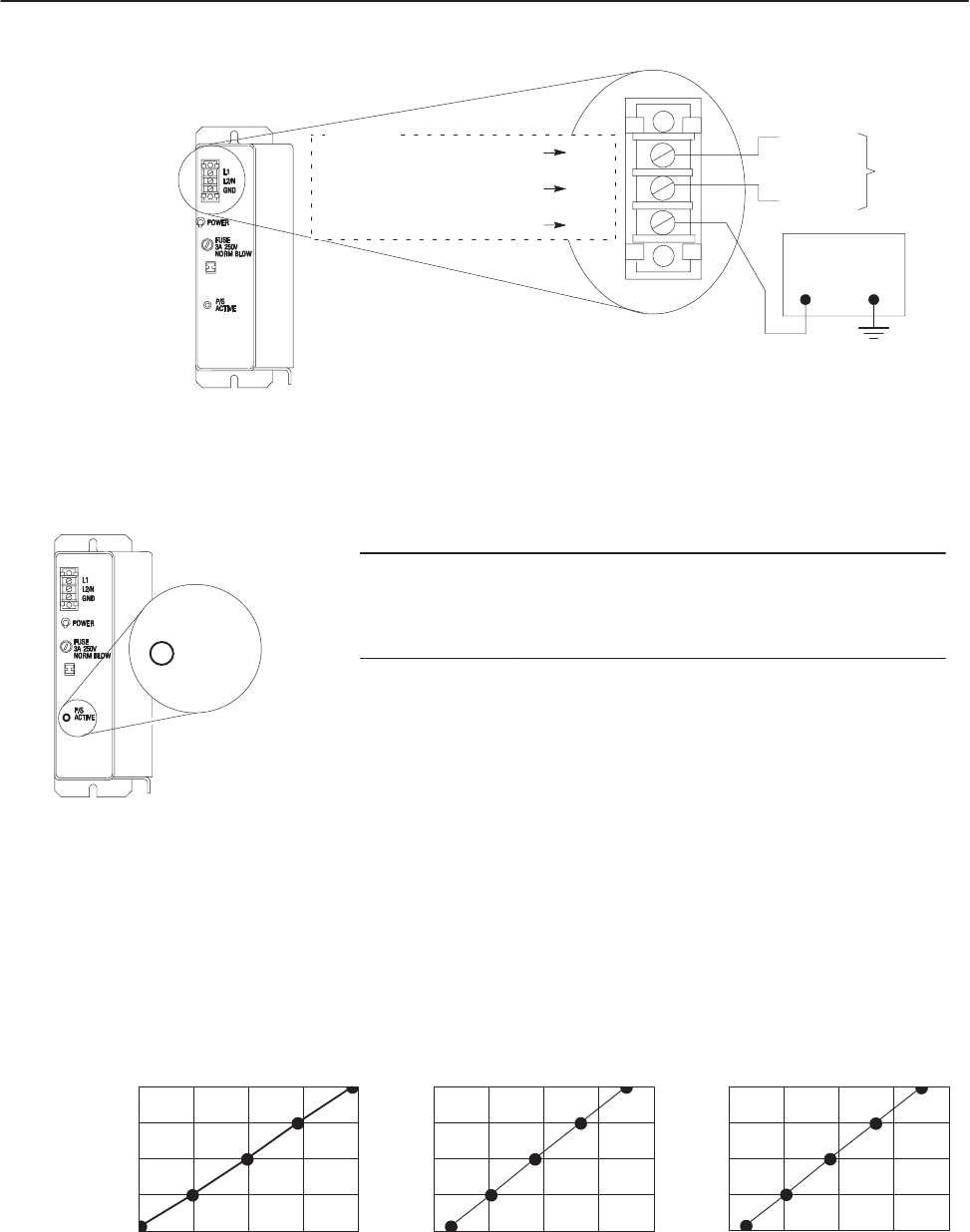

Line 1
Line 2 or
neutral
Ground
Bus
ac power connectors
Grounding electrode
conductor
ac power
(customer
supplied)

A 3A 250V normalĆblow fuse protects the input line L1 from drawing more than 3 amperes.
14 AWG
L1
L2/N
GND
central ground bus (earth ground)
low side of the line power
high side of the line power

Connect
12626ĆI
I
O
The power supply has a green P/S ACTIVE LED that provides status
indication during power supply operation.
Normal operation If indicator is Then
on
off it may be due to:
input voltage not within specified range
blown fuse
overcurrent
Important: If a shutdown condition occurs, wait 15 seconds before
attempting to apply power.
For additional assistance, contact your local Allen-Bradley
representative.
Use these graphs to determine your:
• cooling requirements
• power cost
• transformer size (unless the transformer manufacturer has a
recommended multiplier for sizing a transformer for an ac-to-dc
power supply)
0
4
8
12
16
20 60 100 140 180
0
4
8
12
16
0 306090120
Apparent Power (VA)
Real Power (Watts)
Backplane
Load Current
(Amps)
0
4
8
12
16
0 75 150 225 300
Transformer Sizing (VA) =
Real Power (Watts) x 2.5
Troubleshooting
Power Ratings
