70 Publication 1769-UM018A-EN-P - October 2008
Appendix C Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers

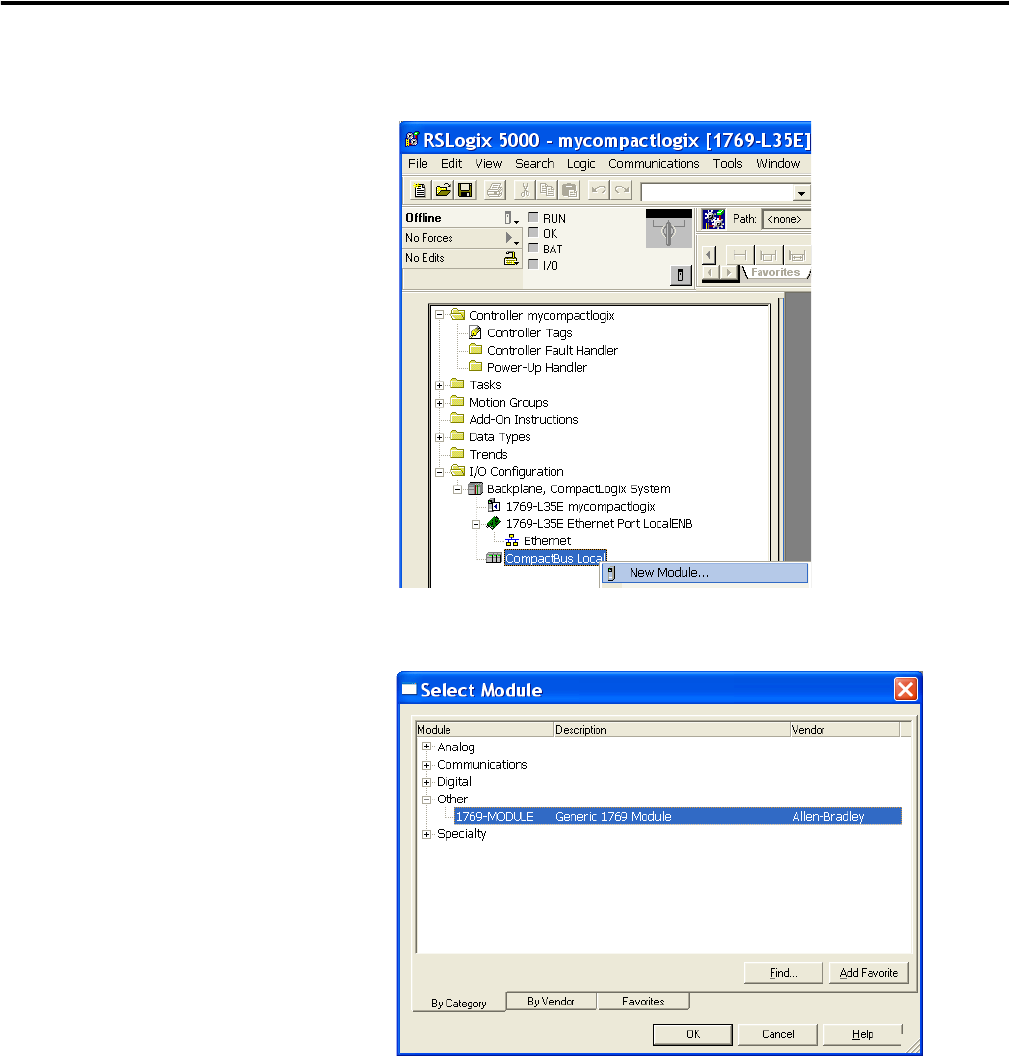

3. In the controller organizer, right-click CompactBus Local, and
choose New Module.
4. Expand the Other group and select the 1769-MODULE Generic
Profile.
5. Click OK.
