Publication 1769-UM018A-EN-P - October 2008 69
Appendix
C
Configuration Using the RSLogix 5000 Generic
Profile for CompactLogix Controllers
Introduction
If the Add-on Profile for the 1769-IF16C or 1769-IF16V module is not
yet available, follow this procedure to configure your module using a
generic profile.
Add the Module to Your
Project

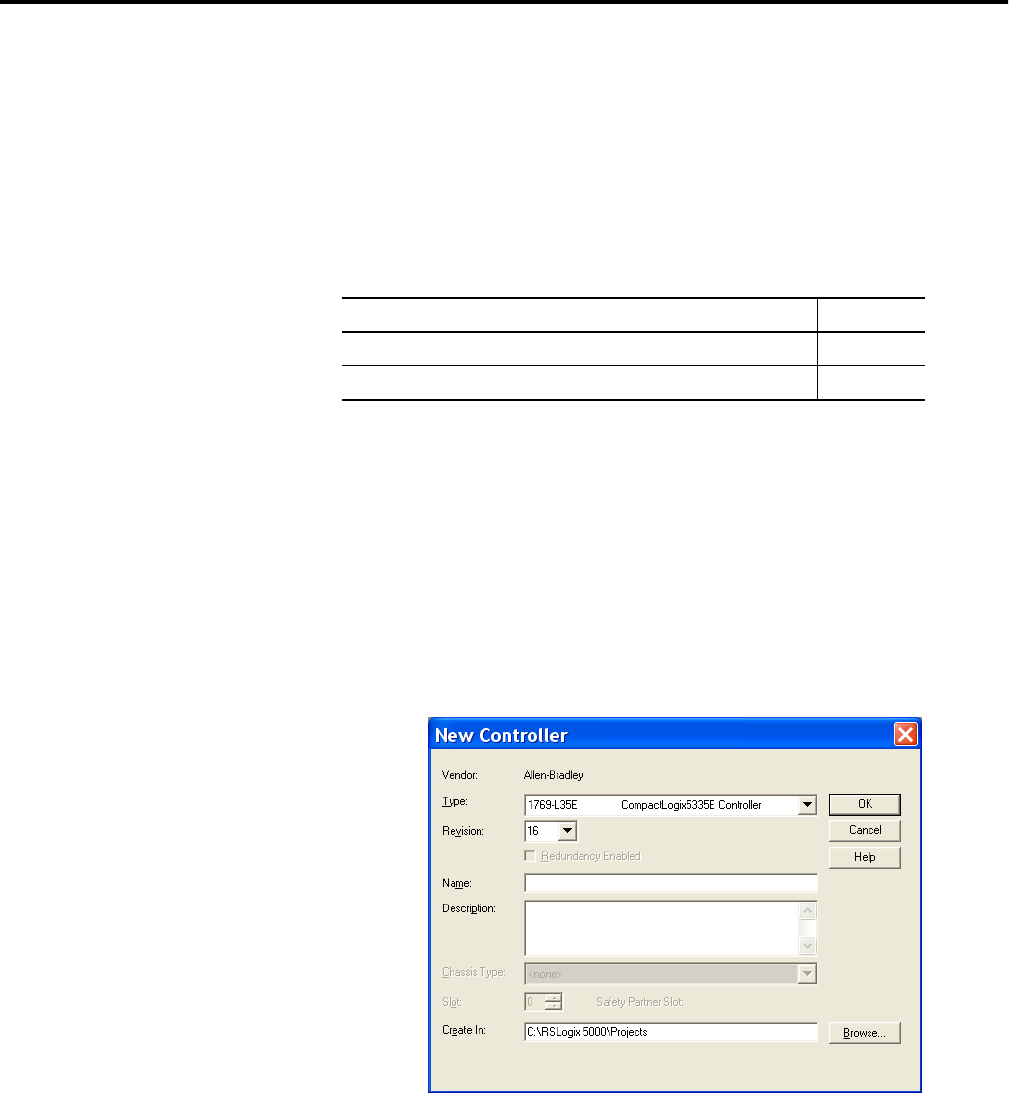

1. Open an existing project in RSLogix 5000 software or start a new
project by choosing File>New.
2. If this is a new project select a CompactLogix controller, type a
name for the controller, and click OK.
Topic Page
Add the Module to Your Project 69
Configure Each I/O Module 72
