68 Publication 1769-UM018A-EN-P - October 2008
Appendix B Module Addressing and Configuration with MicroLogix 1500 Controller

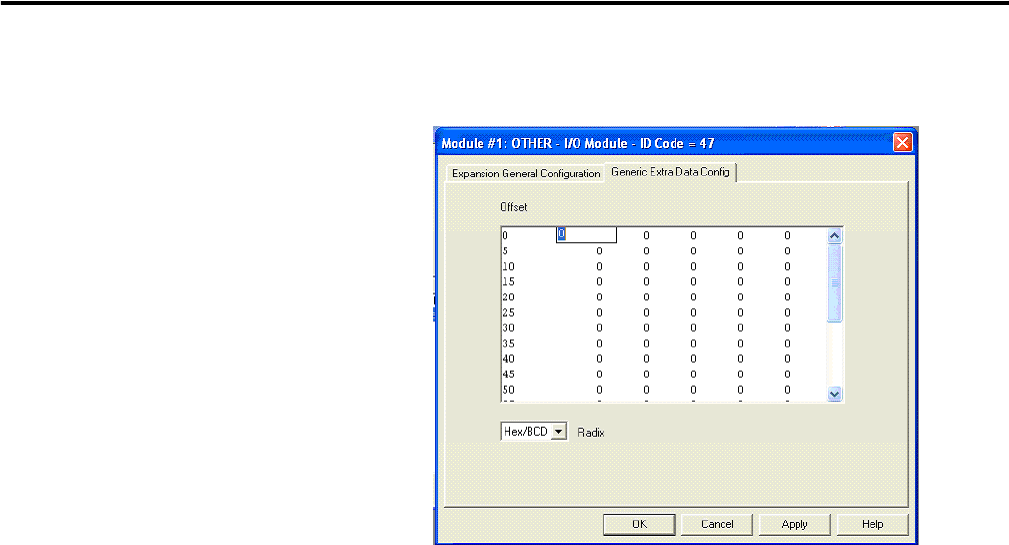

12. To enter data, double-click the configuration word, type the
hexidecimal value, and click Apply.
13. When you are finished entering all the data, click Apply and
then OK.
14. Download the project to the MicroLogix 1500 controller.
