66 Publication 1769-UM018A-EN-P - October 2008
Appendix B Module Addressing and Configuration with MicroLogix 1500 Controller

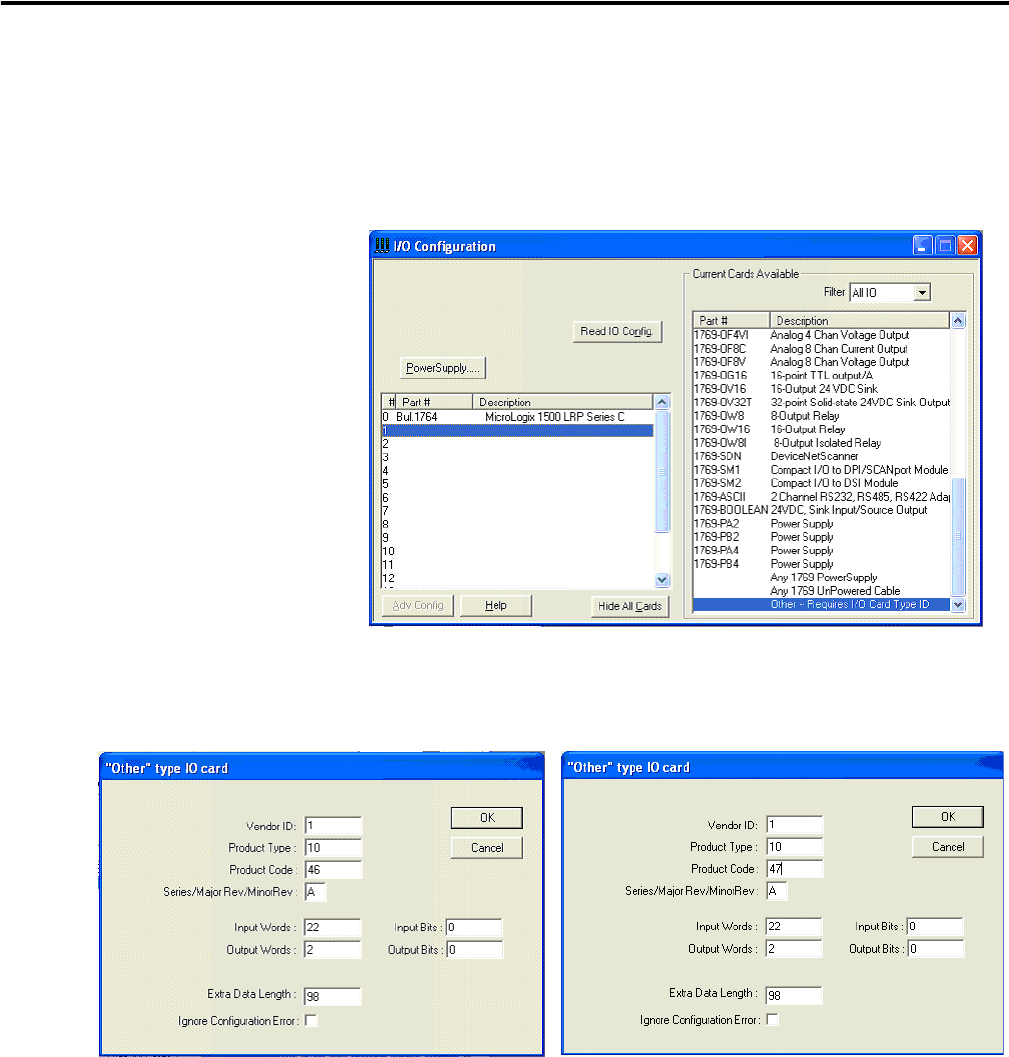

5. On the I/O Configuration dialog box, select the slot position
where you want to add your module.
6. In the Current Cards Available list, double-click Other – Requires
I/O Card Type to add a generic module to the project in the
indicated slot position.
7. To add a module to the project, complete the fields on the Other
Type I/O Card dialog box as shown.
8. Click OK to add the generic module to the project.
For a 1769-IF16V module: For a 1769-IF16C module:
