10-2 Communicate from a Logix Controller to an SLC 5/03 Controller over EtherNet/IP and DH-485 Networks

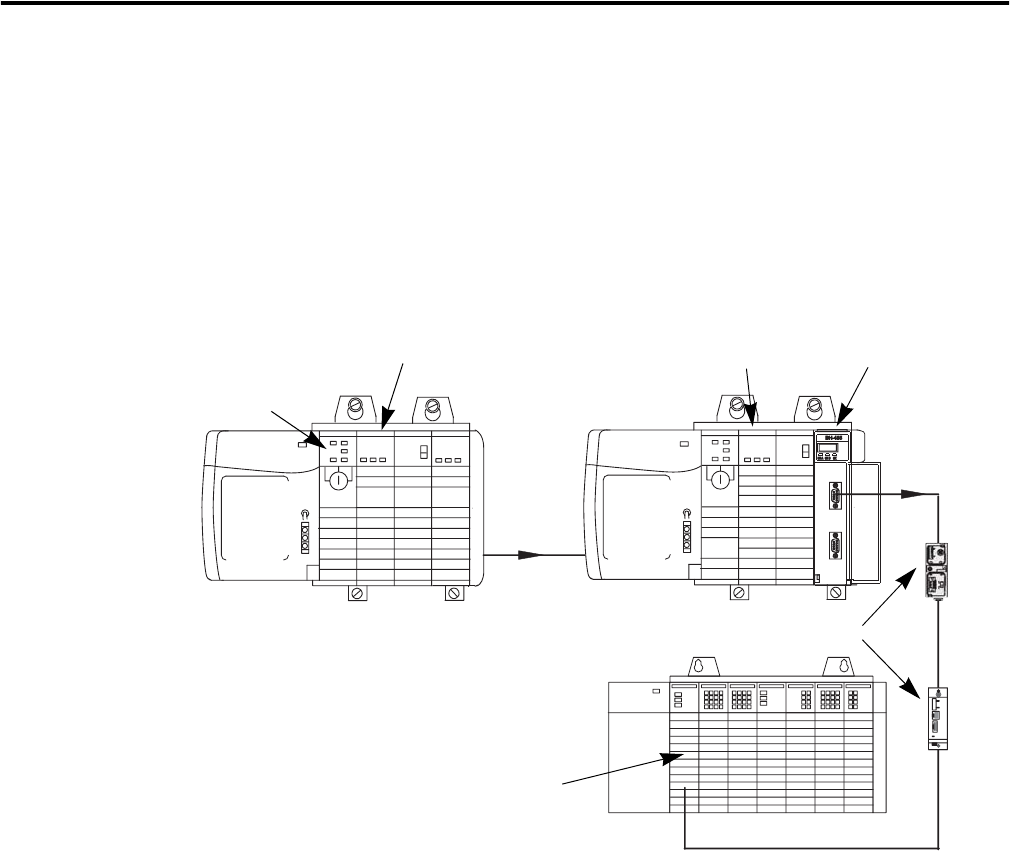

Hardware Configuration

In this hardware configuration, a Logix controller communicates to an SLC

5/03 controller over EtherNet/IP.

• The 1756-ENBT module

(1) to communicate to a remote 1756-ENBT

module

(2) over the EtherNet/IP network backplane

• The 1756-DH485 module

(3) then communicates through Channel A

to the SLC 5/03

(4) controller through link couplers over a DH-485

Network.

ControlLogix Controller

1756-ENBT

(1)

1756-ENBT (2)

1756-DH485

(3)

Backplane

Channel A

SLC 5/03 Controller (4)

1756-DH485 communicating

through link cou ple rs.

44067

AIC+

AIC
