9-4 Communicate to a SLC 5/03 Cont ro lle r on a DH-485 Network
Configure the Message

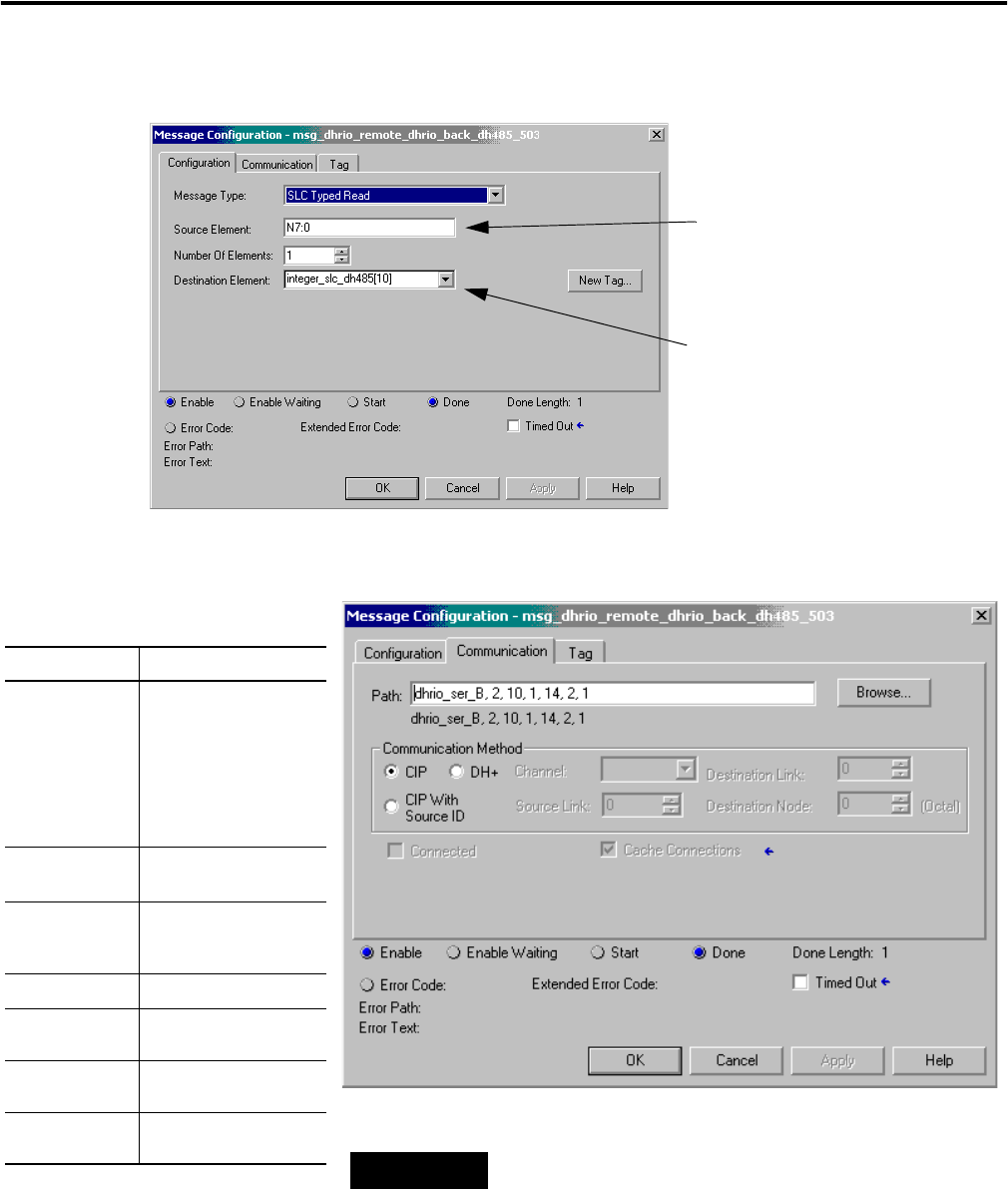

These are the configuration dialogs for the example message.
Data table memory is in the
SLC 5/03 controller. The
message is coming from the
ControlLogix controller.
Destination storage is in the
1756-L55 controller.
Path Item Description
dhrio_ser_B When you browse to
the local 1756-DHRIO
module appears if you
have it configured in
the I/O configuration
tree in RSLogix 5000
software.
2 Channel A of the
1756-DHRIO module.
10
The remote 1756-DHRIO is
node 12 octal or 10
decimal.
1
Backplane
14
1756-DH485 module in
slot 14.
2
Channel A of the
1756-DH485 module.
1
SLC 5/03 Controller Node
Address
TIP
You do not need to create a routing
table when your communication
method is CIP messaging.
