Publication 1756-UM532A-EN-P - May 2006

9-2 Communicate to a SLC 5/03 Cont ro lle r on a DH-485 Network

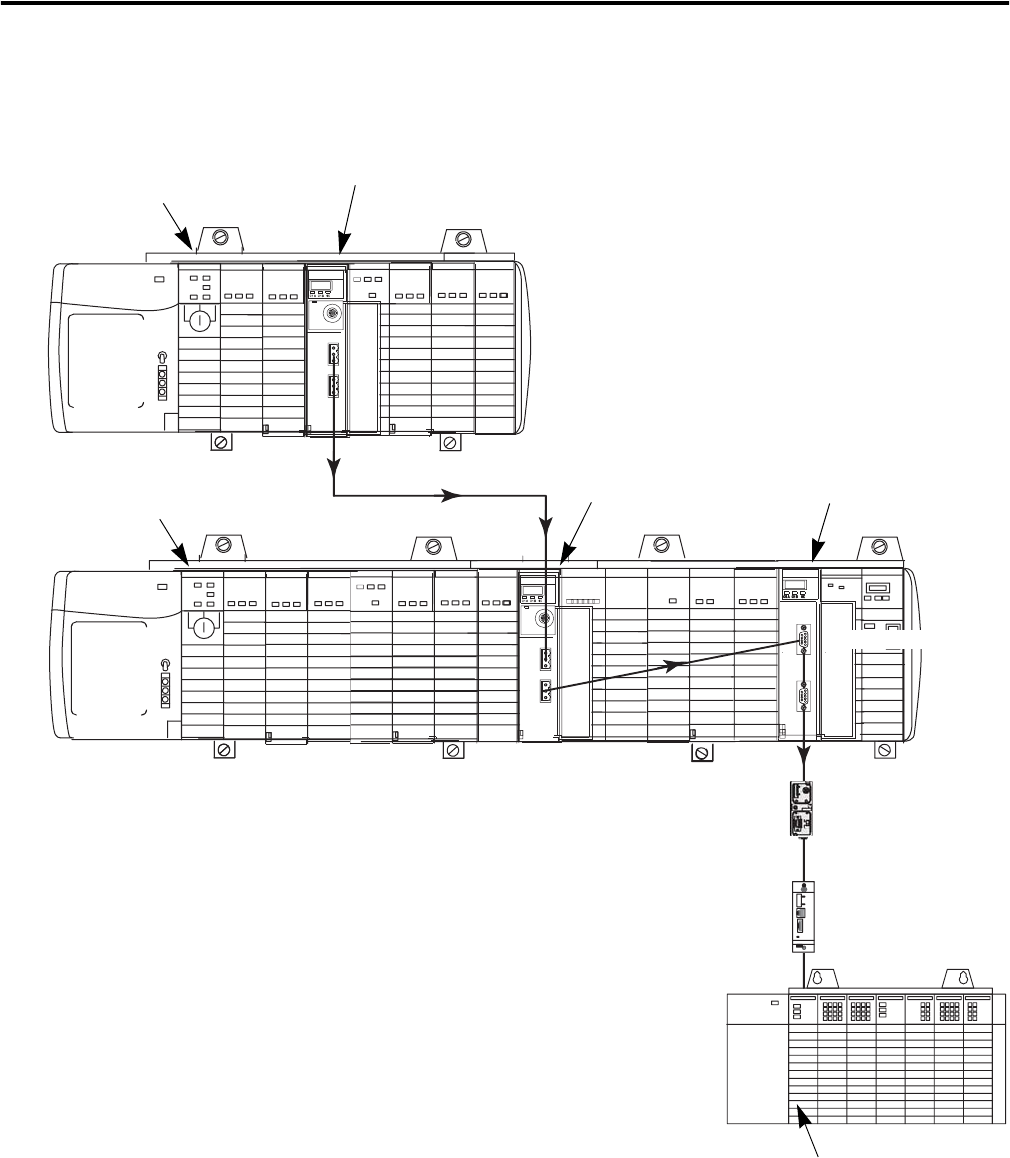

Hardware Configuration

In this hardware configuration, the ControlLogix controller initiates a CIP

message from the 1756-DHRIO module to an SLC 5/03 controller located on

a DH-485 network.

DH+/RIO

DH485

DH+/RIO

ControlLogix

Controller

1756-DHRIO

(2)

1756-DH485 (3)

Channel A (4)

The SLC 5/03 controller

receives the message.

(6)

DH-485 network

communicates

through link

couplers.

(5)

44066

1756-DHRIO (1)

DH+ Network

AIC+

AIC

• The communication path goes from the local

1756-DHRIO module across the DH+ network to

another 1756-DHRIO module on the same DH+

network. (1)

• The remote 1756-DHRIO module is node 12 octal or

10 decimal. (2)

• This 1756-DHRIO module at node 12 is located on the

same backplane as a 1756-DH485 module in slot 14. (3)

• Channel A (4) of the 1756-DH485 module is on a

DH-485 network (5) with an SLC 5/03 controller as

node 1. (6)

ControlLogix

Controller
