Publication 1756-UM532A-EN-P - May 2006
Communicate from an SLC 5/05 Controller to an SLC 5/03 Contr oller over an EtherNet/IP Network 8-3
Create a Message in
RSLogix 500

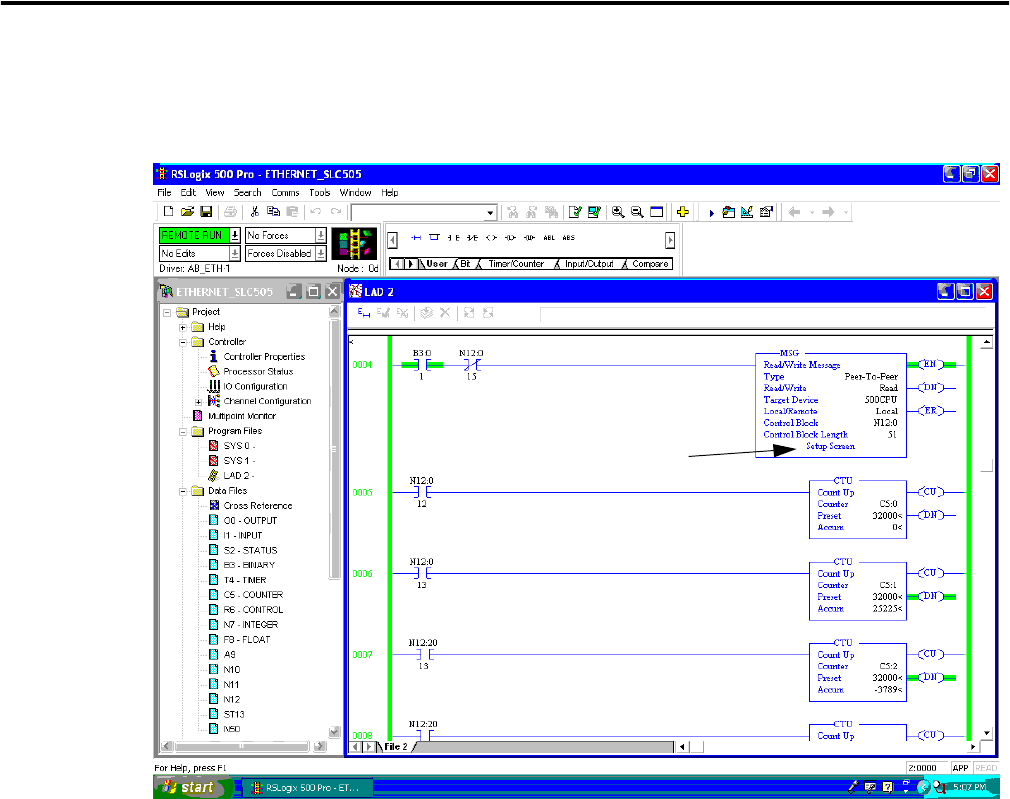

This is the message for the example configuration. Click on Setup Screen to
configure the message.
Click on Setup Screen to
configure the message.
