Communicate Between SLC Contr ollers ove r DH + and DH485 Networks 6-11
Configure the Message

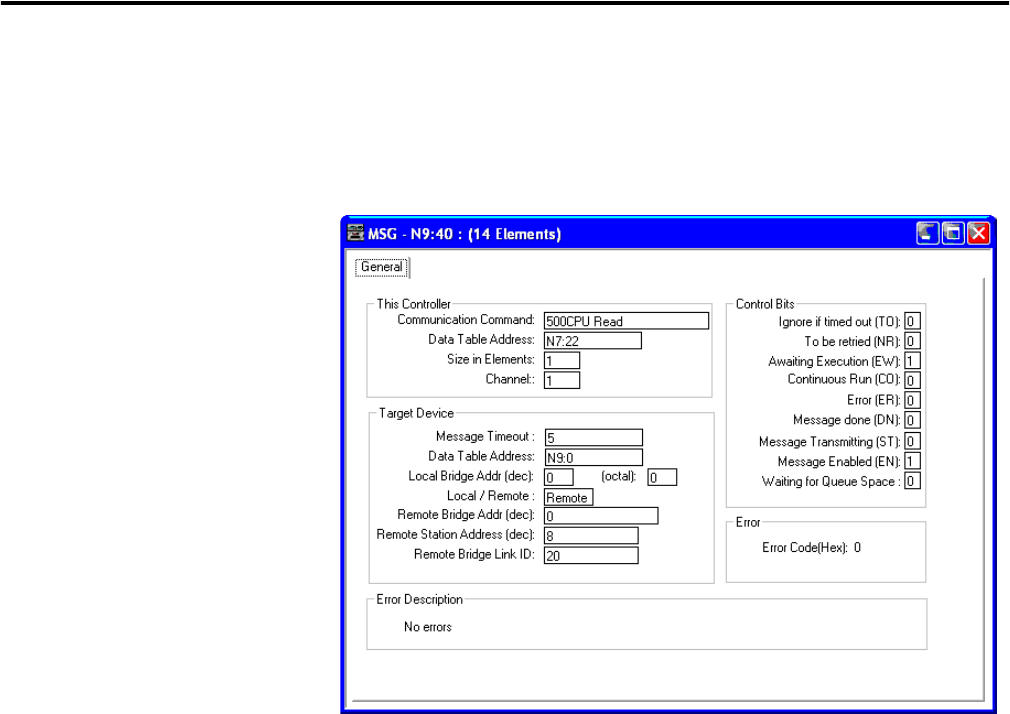

This is the Setup Screen for the example message.
In this example, the SLC 5/03
controller is connected to
Channel A of the 1756-DH485
module. The 1756-DH485 node
address on the DH-485 network
is node 0.
