5-6 Communicate from an SLC 5/03 Controller to a Logix Controller over a DH-485 Network
Create a Logic Map for the
Local Message in RSLogix
5000 Software
You must logically map the SLC data address to the ControlLogix tag. To get
to the Logix Map in RSLogix 5000 software go to: Logic > Map PLC/SLC
Messages.

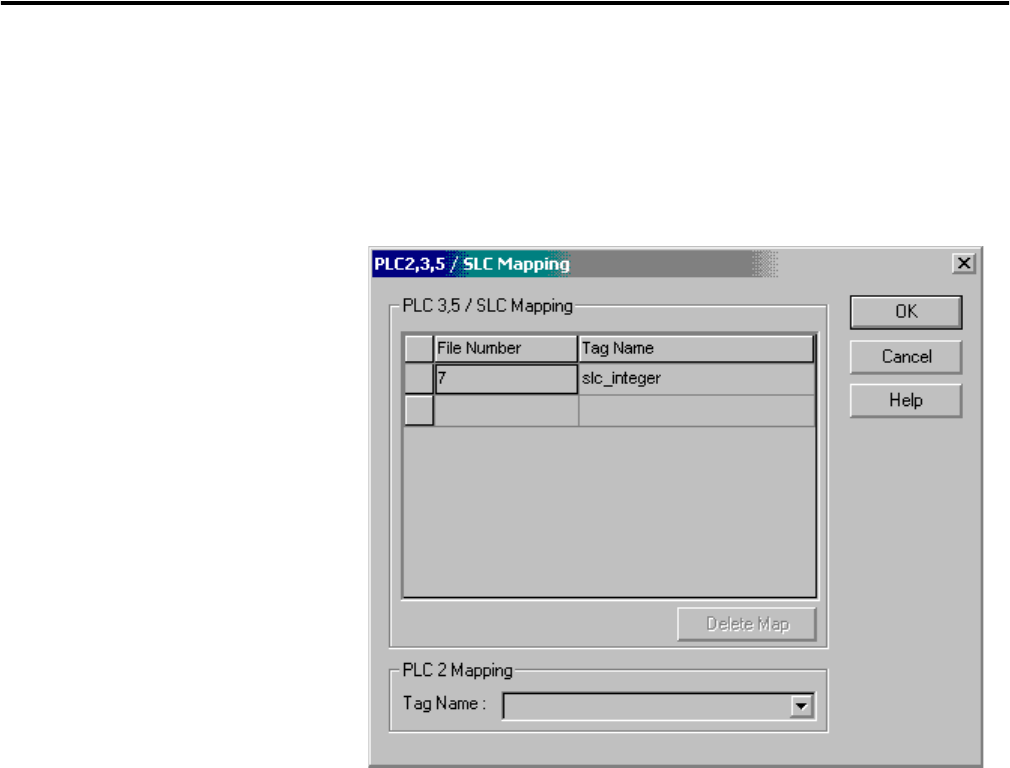

This is the logic map needed for the example message.
