Publication 1756-UM532A-EN-P - May 2006

3-12 Use Data Highway 48 5 Ne two rk

Application Timeout

When an error occurs while sending a message to a remote link, it appears to

the sending station as an application timeout because error messages are not

routed back. When an error occurs during routing, it may be dropped.

For example, if an SLC 5/03 controller sends a message to another SLC 5/03

controller, and the second SLC 5/03 controller’s buffers are full, three

things happen:

• The SLC 5/03 controller refuses the message because the buffers are

full.

• The originator detects an application timeout when no reply is received.

• The originator increments its error count.

The SLC 5/03 controller can retry to send the message later. This figure

shows an example of an application timeout.

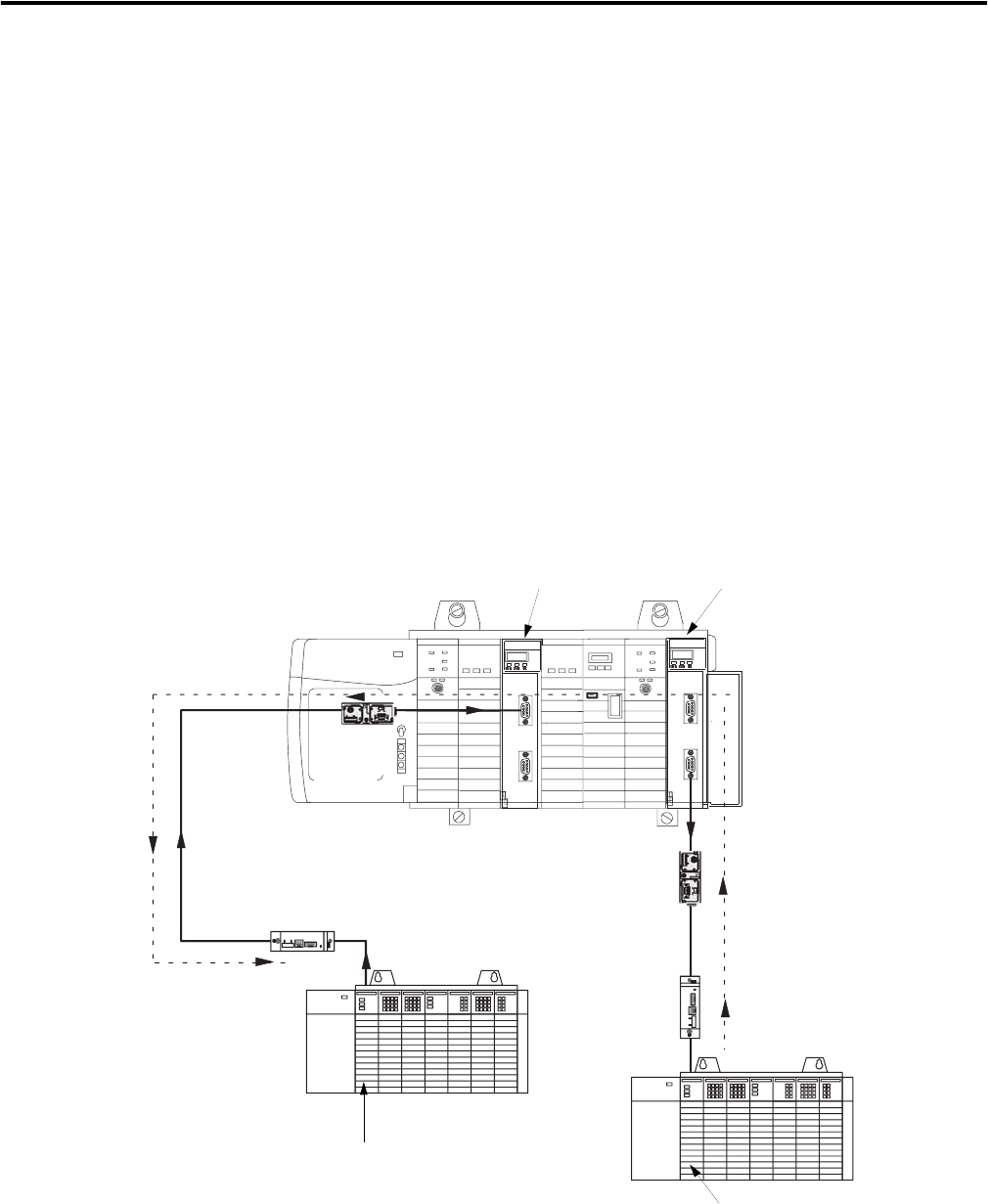

Example of an Application Timeout

DH485

ControlLogix Chassis

44068

Routed messages sent

over the bac kplane.

1756-DH48 5 Module

SLC 5/03 Controller

1756-DH485 Module

SLC 5/03 controller detects an

application timeout and

increments an error bit.

DH-485 Link 1

DH-485

Link 2

SLC 5/03 controller

buffers are full.

AIC+

AIC
