Overview of the DH-485 Network 2-9

Configure the SLC 5/03, SLC 5/04, and SLC 5/05 Controller Channel

0 for DH-485

The RS-232 port (channel 0) of the SLC 5/03, SLC 5/04, and SLC 5/05

controllers can be configured for DH-485 protocol. You can connect channel

0 of the SLC 5/03, SLC 5/04, and SLC 5/05 controllers to a DH-485 network

using the 1747-CP3 cable and a 1761-NET-AIC Advanced Interface

Converter (AIC+). In this case, the AIC+ must be powered with 24V dc. The

1746-P1, -P2, -P4, -P5, and -P6 power supplies provide 24V dc user power

that may be used to power the AIC+

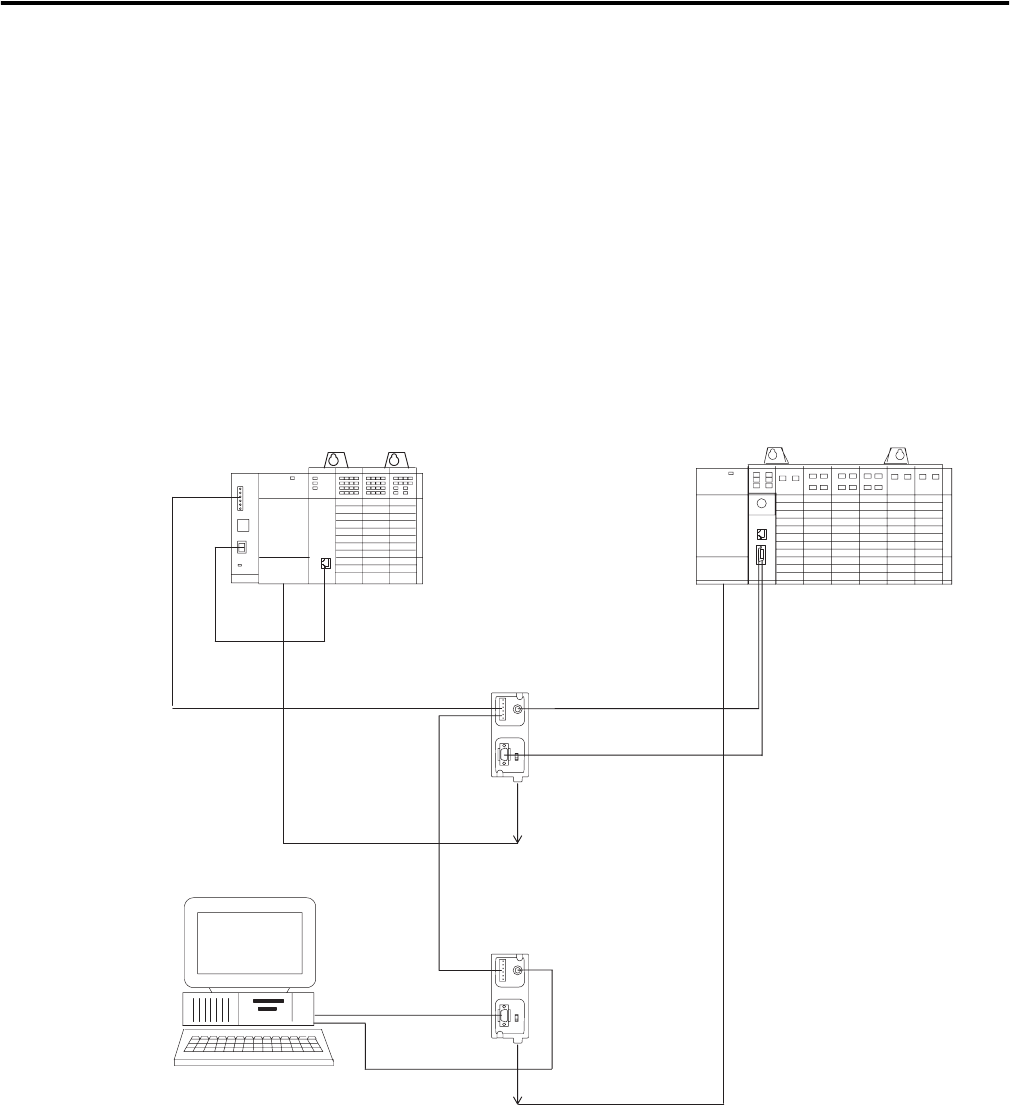

Configure an SLC Controller for DH-485.

APS

SLC 5/01

1747-AIC

1747-C11

DH-485

1761-NET-AIC

24V dc User Power

Connection

1761-NET-AIC

24V dc User Power Connection

Personal Computer

RS-232

24V dc Power

Supply

SLC 5/03, 5/04, or 5/05

1747-CP3 or

1761-CBL-PM02

1761-CBL-PM02 o r

1747-CP3
