14 Using an Assembly Connection

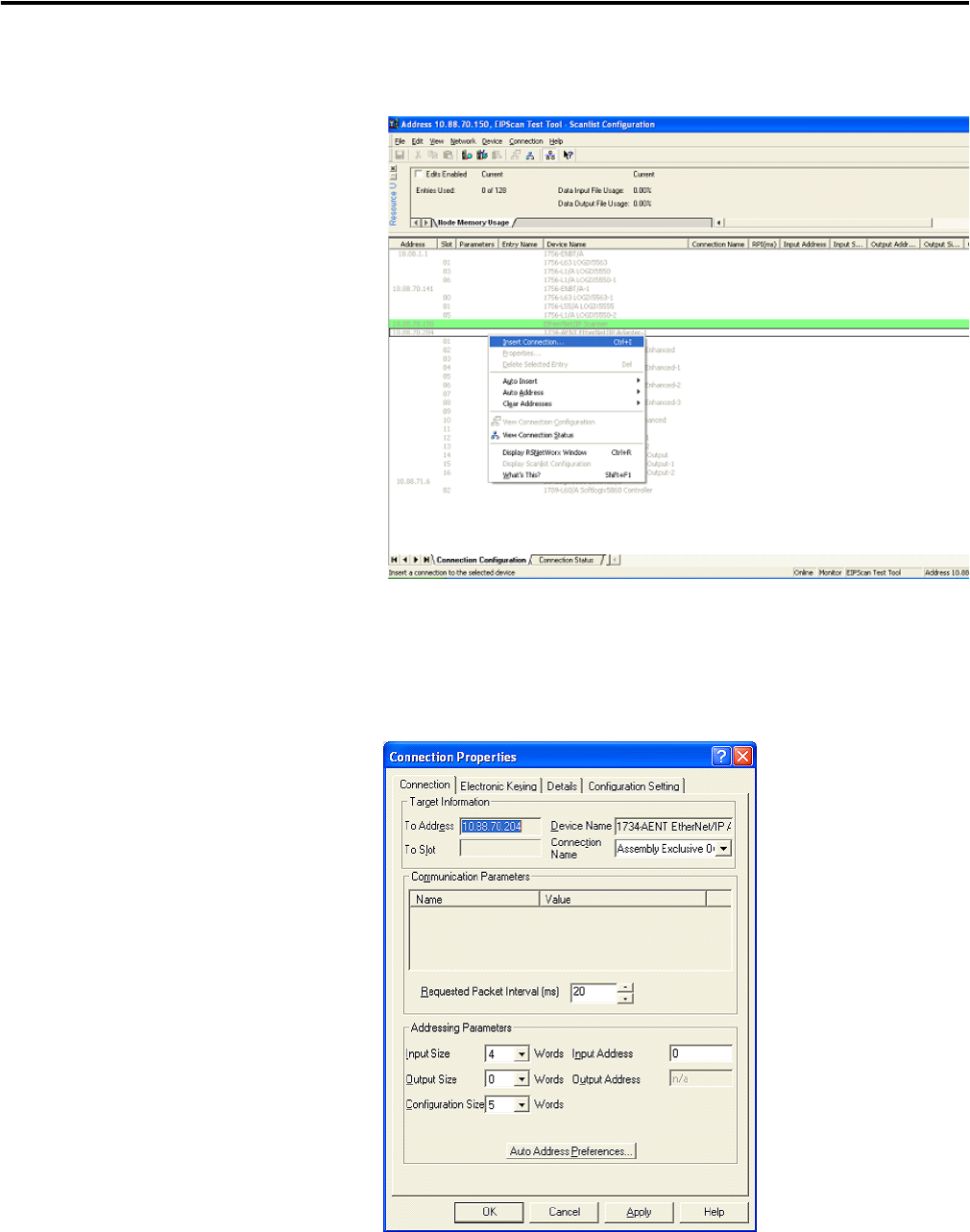

3. Right click the targeted adapter and select Insert Connection to display
the Connection Properties dialog.
4. On the Connection tab of this dialog, select the connection from the
Connection Name pull-down (for example, Exclusive Owner and
Listen-Only connections). Listen-Only connections are only accepted if
an Exclusive Owner connection already exists.
