Mount the I/O Base
To mount the ArmorPoint I/O base on a wall or panel, use the scre w
holes provided in the ArmorPoint base.

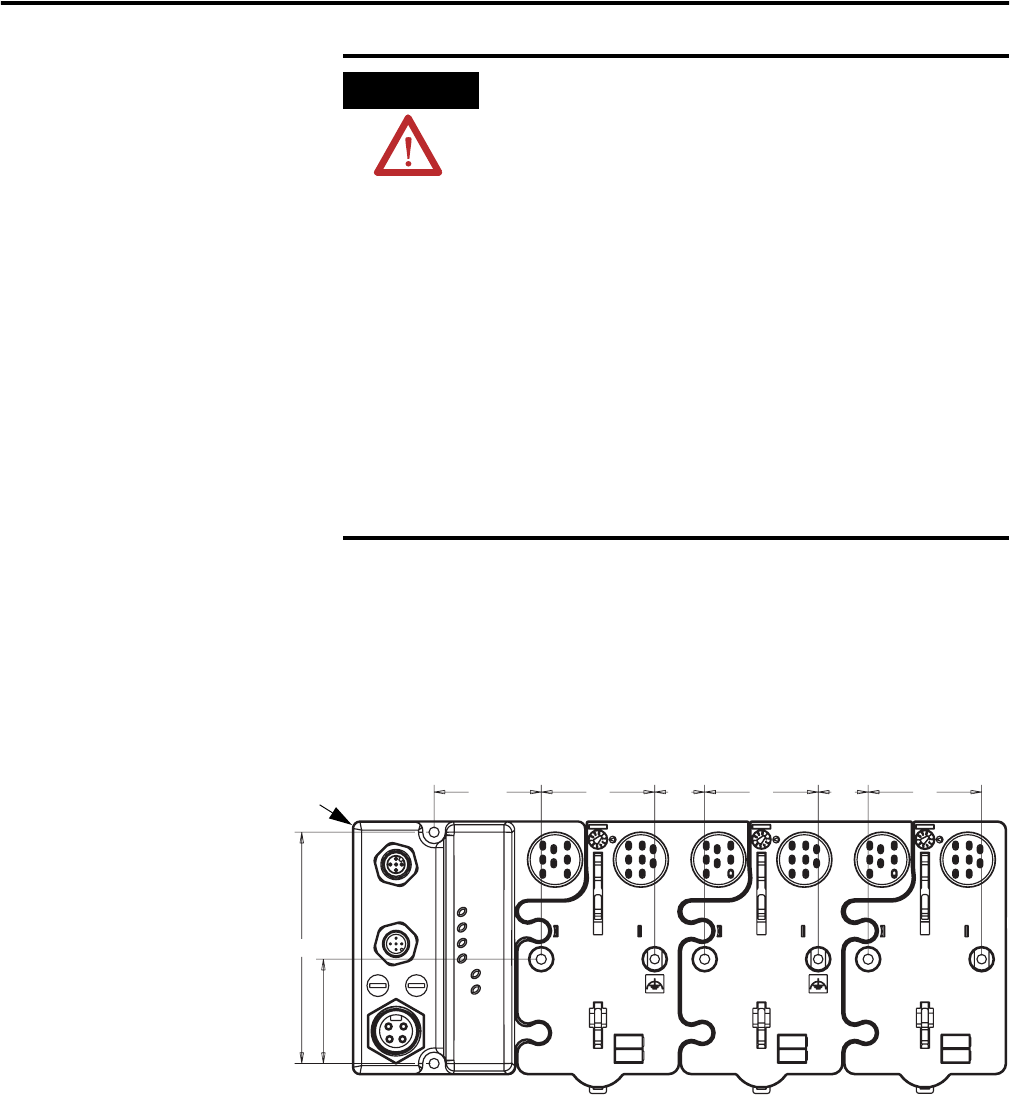

A mounting illustration for the ArmorPoint base with an adapter is
shown below.
Install the mounting base as follows:
1. Lay out the required points as shown above in the drilling
dimension drawing.
2. Drill the necessary holes for #8 (M4) machine or self-t apping
screws.
ATTENTION
Preventing Electrostatic Discharge
This equipment is sensitive to electrostatic discharg e,
which can cause internal damage and affect normal
operation. Foll ow these guidelines when you h andle
this equipment:
• Touch a grounded object to discharge potential
static.
• Wear an approved grounding wriststrap.
• Do not touch connectors or pins on component
boards.
• Do not touch circuit components inside the
equipment.
• If available, use a static-safe workstation.
• When not in use, store the equipment in
appropriate static-safe packaging.
43769
4.02 in.
102 mm
1.81 in.
46 mm
Adapter
1.9 in.
47.2 mm
2.0 in.
50 mm
0.87 in.
22 mm
2.0 in.
50 mm
0.87 in.
22 mm
2.0 in.
50 mm
