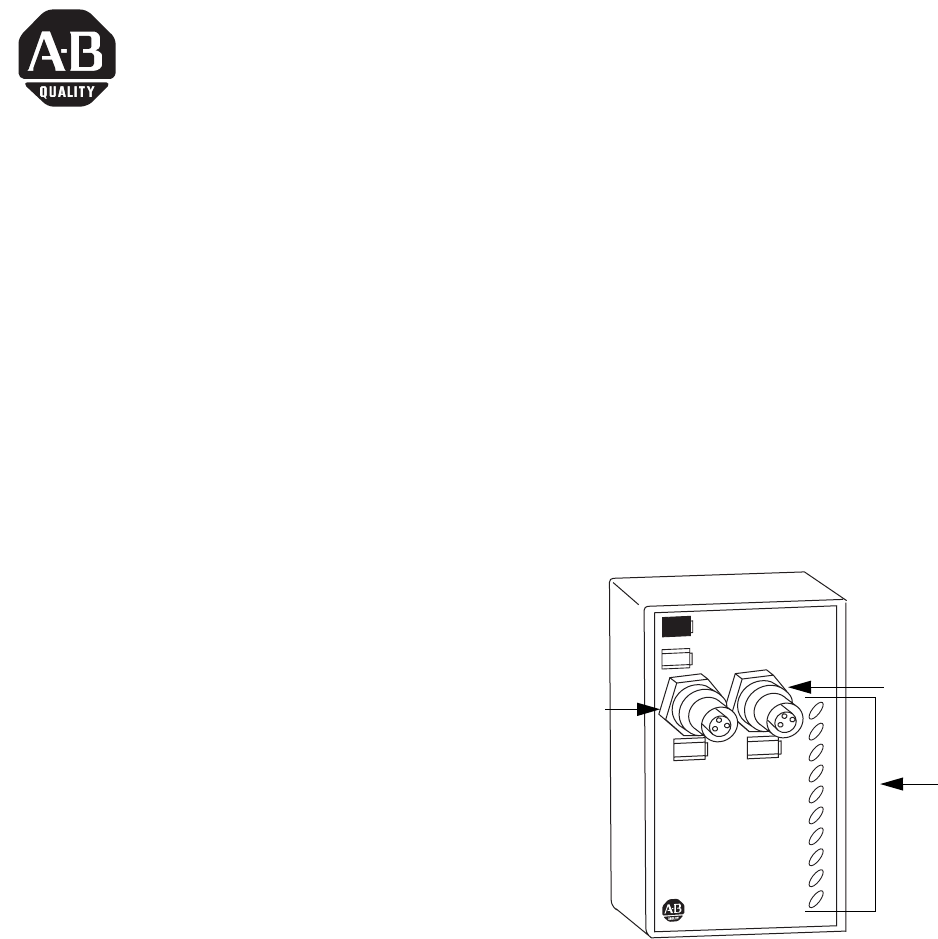

Installation Instructions ArmorPoint AC Output Module, Series A (Cat. No. 1738-OA2M12AC3) The ArmorPoint I/O family (Cat. no. 1738) consists of modular I/O modules. The sealed IP67 housing of these modules requires no enclosure. (Note that environmental requirements other than IP67 may require an additional appropriate housing.) I/O connectors are sealed M12 AC keyed (micro) styles. The mounting base ships with the module. The 1738-OA2M12AC3 module is shown below.
ArmorPoint AC Output Module, Series A Important User Information Solid state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication SGI-1.1 available from your local Rockwell Automation sales office or online at http://www.ab.com/manuals/gi) describes some important differences between solid state equipment and hard-wired electromechanical devices.
ArmorPoint AC Output Module, Series A ATTENTION 3 Environment and Enclosure This equipment is intended for use in overvoltage Category II applications (as defined in IEC publication 60664-1), at altitudes up to 2000 meters without derating. This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR Publication 11.
ArmorPoint AC Output Module, Series A ATTENTION Preventing Electrostatic Discharge This equipment is sensitive to electrostatic discharge, which can cause internal damage and affect normal operation. Follow these guidelines when you handle this equipment: • Touch a grounded object to discharge potential static. • Wear an approved grounding wriststrap. • Do not touch connectors or pins on component boards. • Do not touch circuit components inside the equipment.
ArmorPoint AC Output Module, Series A 5 3. Mount the base using #8 (M4) screws. 4. Ground the system using the ground lug connection. (The ground lug connection is also a mounting hole.) Mounting base KeyswitchSet to position 8 for the 1738 AC output module Ground lug connection 43675 Latching mechanism Install the ArmorPoint AC Output Module To install the ArmorPoint AC output module, proceed as follows. 1.
ArmorPoint AC Output Module, Series A 3. Push the module down until it engages the latching mechanism. You will hear a clicking sound when the module is properly engaged. The locking mechanism will lock the module to the base. Remove the ArmorPoint AC Output Module From the Mounting Base To remove the module from the mounting base: 1. Put a flat blade screwdriver into the slot of the orange latching mechanism. 2. Push the screwdriver toward the I/O module to disengage the latch.
ArmorPoint AC Output Module, Series A Wire the AC Output Module 7 Following are wiring instructions for the ArmorPoint AC output module. 1738-OA2M12AC3 43761 Make sure all connectors and caps are securely tightened to properly seal the connections against leaks and maintain IP67 requirements.
ArmorPoint AC Output Module, Series A Troubleshoot with the Indicators 1738-OA2M12AC3 1738-OA2M12AC3/A Out 12V ac 0 1 M O D N E T Module Status Indicators Network Status Indicators 0 I/O Status Indicators 1 43714 Indication Probable Cause Module Status Off No power applied to device Green Device operating normally Flashing Green Device needs commissioning due to missing, incomplete, or incorrect configuration Flashing Red Recoverable fault Red Unrecoverable fault - may require devic
ArmorPoint AC Output Module, Series A Indication 9 Probable Cause I/O Status Specifications ArmorPoint AC Output Module Outputs per Module On-state Voltage Rating Maximum Minimum Nominal On-state Voltage Drop, Maximum On-state Current Maximum Minimum Output Current Rating Surge Current, Maximum Delay Time OFF to ON1, Maximum Delay Time, ON to OFF1, Maximum Off-state Leakage, Maximum External AC Power Supply Voltage External AC Power Supply Voltage Range Keyswitch Position General Specifications LED Ind
ArmorPoint AC Output Module, Series A General Specifications (continued) Relative Humidity Shock Vibration ESD Immunity Radiated RF Immunity EFT/B Immunity Surge Transient Immunity Conducted RF Immunity Emissions Enclosure Type Rating Mounting Base Screw Torque Wiring Category2 Weight Imperial (Metric) Certifications: (when product is marked) IEC 60068-2-30 (Test Db, Un-packaged Non-operating Damp Heat): 5-95% non-condensing IEC60068-2-27 (Test Ea, Unpackaged Shock): Operating 30g Non-operating 50g
ArmorPoint AC Output Module, Series A 11 Notes: Publication 1738-IN007A-EN-E - June 2004
