User Manual

ArmorPoint 24V DC 16 Point Input and Output Modules, Series A 5
Publication
1738-IN023B-EN-E - February 2010
Mount the I/O Base
To mount the base on a wall or panel, use the screw holes provided in the
base.
Refer to the Drilling Dimensions illustration of the base with an adapter to
help you mount the base.

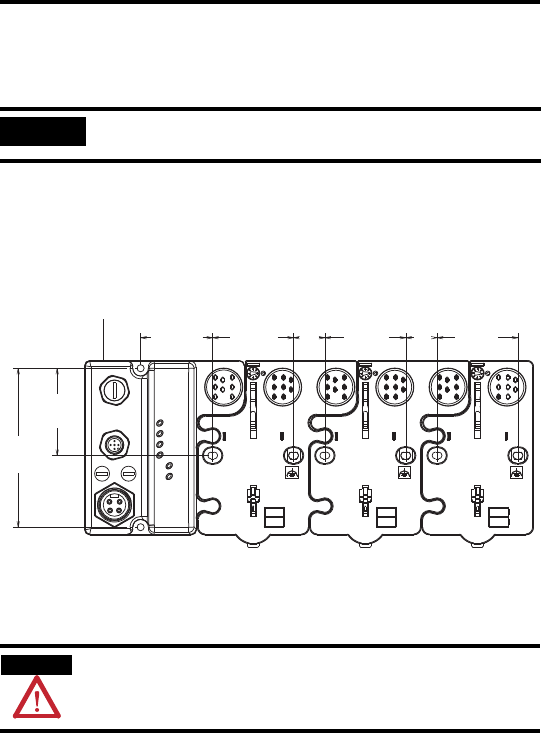

Drilling Dimensions
IMPORTANT
The module must be mounted on a grounded metal mounting plate or other
conductive surface.
ATTENTION
You can only use the 1738-EP24DC expansion power unit with the 1738
ArmorPoint I/O adapters.
Adapter
102 mm
(4.02 in)
56 mm
(2.2 in)
46.25 mm
(1.8 in)
51.9 mm
(2.0 in)
20.1 mm
(0.8 in)
51.9 mm
(2.0 in)
51.9 mm
(2.0 in)
20.1 mm
(0.8 in)
43769
