POINT I/O 2 Current and 2 Voltage Input Analog Modules 11
Publication
1734-IN027A-EN-E - May 2005

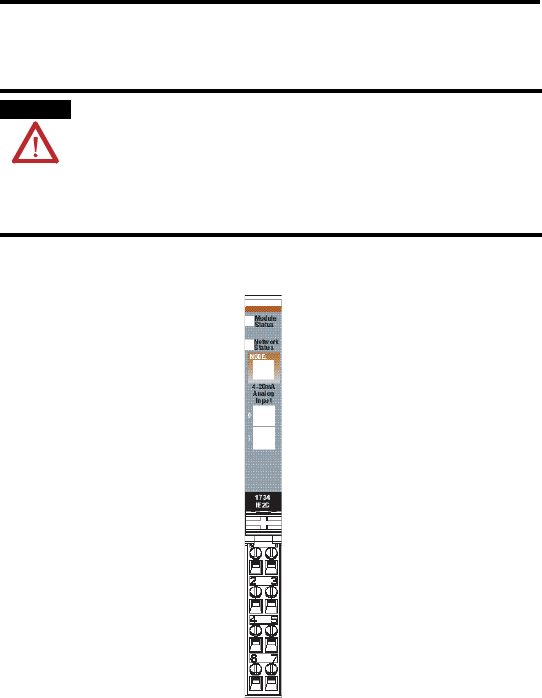

Wire the Module
WARNING
If you connect or disconnect wiring while the
field-side power is on, an electrical arc can occur.
This could cause an explosion in hazardous
location installations. Be sure that power is
removed or the area is nonhazardous before
proceeding.
41974
1734-IE2C POINT I/O 2 Current Input Analog Module
Module Status
Network Status
Status of Input 0
Status of Input 1
Input 0 Connection
Input 1 Connection
C
Chas Gnd = Chassis ground
C = Common
V = Supply
Chas Gnd
Chas Gnd
C
V
V
