supporting Sequence of Events

71 Publication 1732E-UM002A-EN-P - March 2010
Chapter 10
Troubleshoot the Module
Introduction
This chapter describes how to troubleshoot the 1732E EtherNet/IP
ArmorBlock Supporting Sequence of Events using RSLogix 5000.
Troubleshoot the Module
In addition to the Status Indicators on the module, RSLogix 5000 alerts you to
fault and other conditions in one of three ways:
• Warning signal on the main screen next to the module – This occurs
when the connection to the module is broken.
• Message in a screen’s status line.

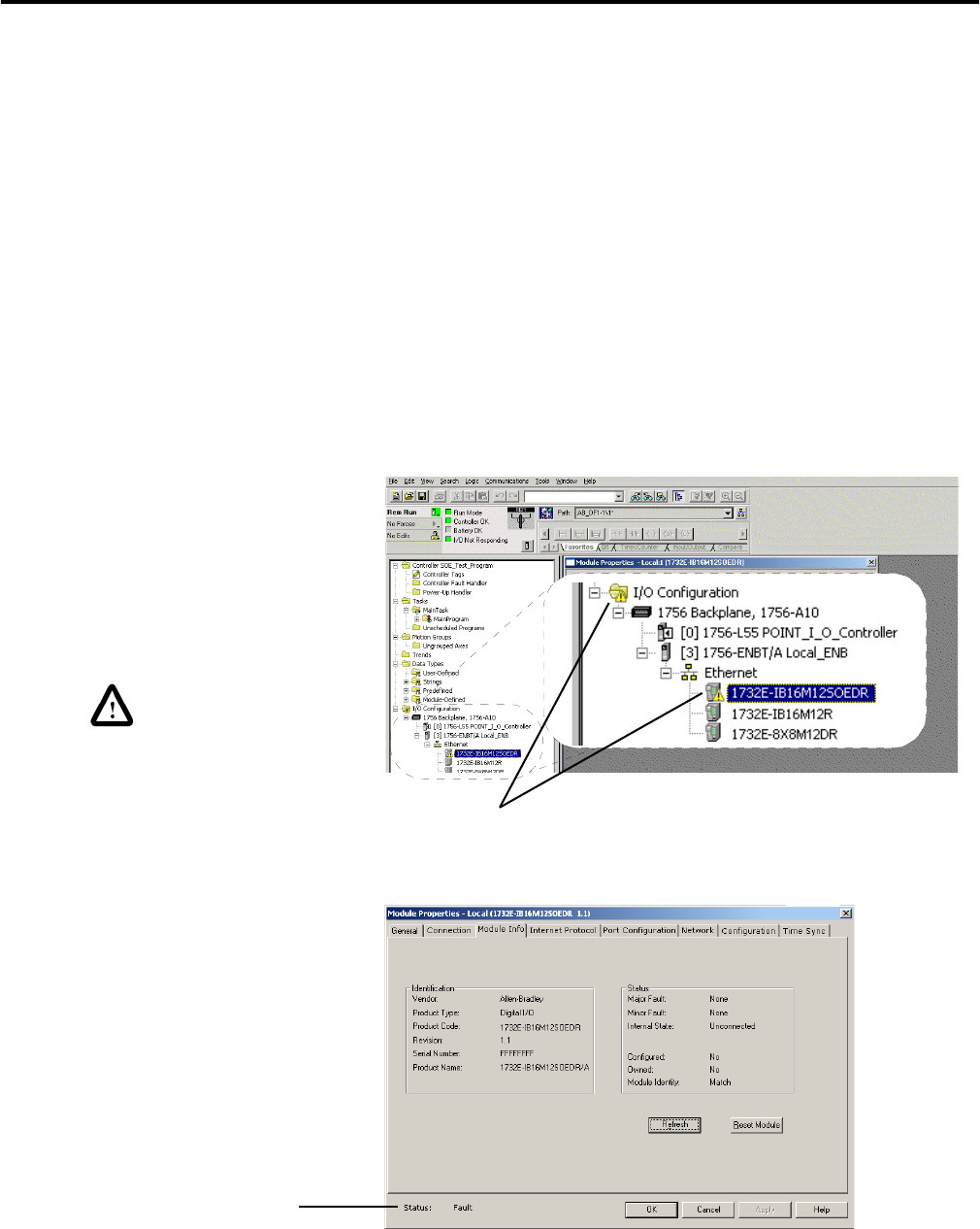

Warning icon appears when a
communications fault occurs or
if the module is inhibited
Warning signal - The module has a communications fault
Status line provides information
on the module’s fault and on the
connection to the module
