Chapter
9
Interpret Status Indicators
Introduction
This chapter contains information about status indicators.

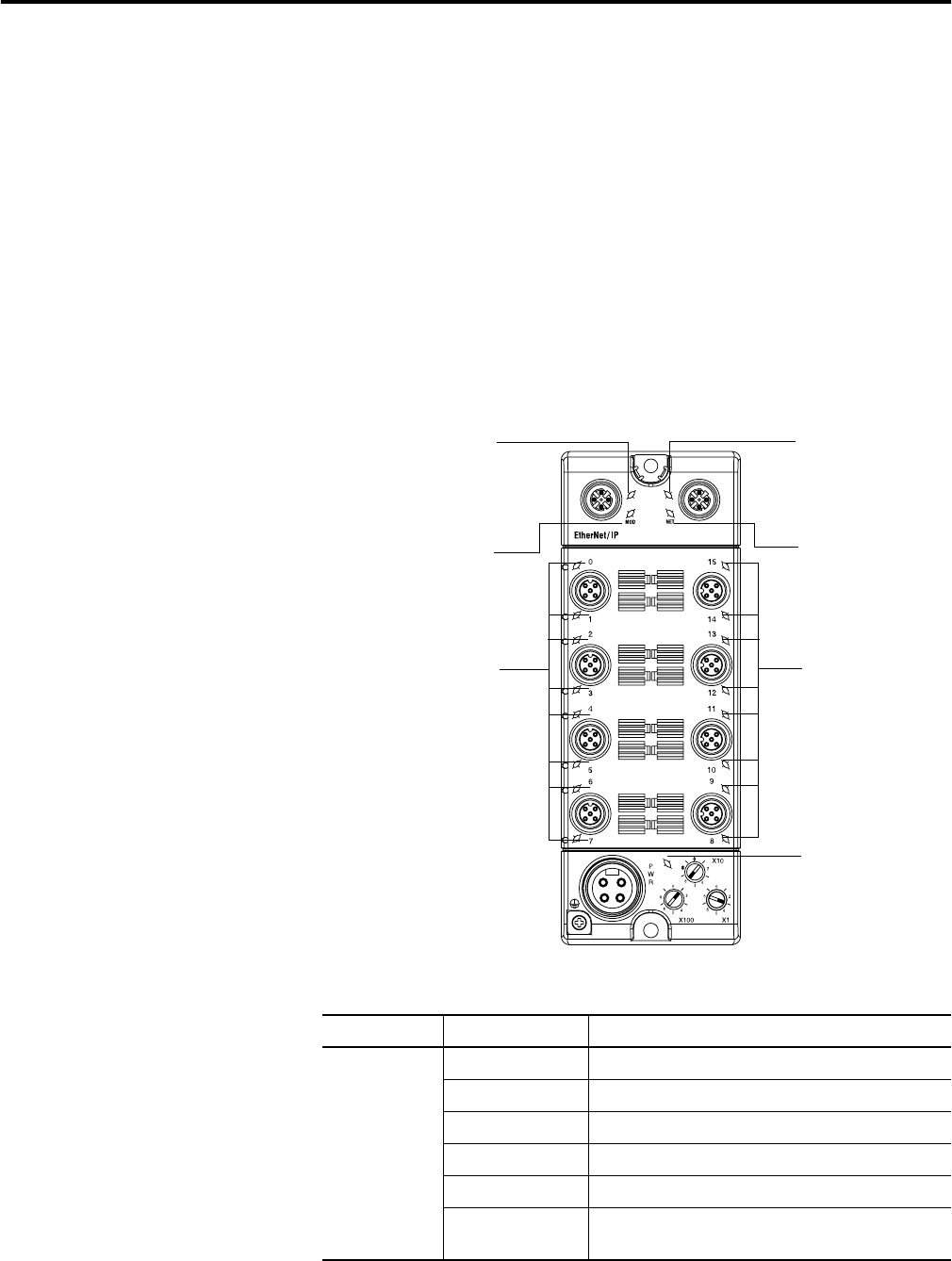

This module has the following indicators:
• Network, Module, and Link status indicators for EtherNet/IP
• Auxiliary Power indicator
• Individual I/O status indicators for inputs
.
Indicator Status for Module
Status Description
Module status Off No power applied to device.
Flashing red/green Device is in self-test.
Flashing green Device not synchronized to master clock.
Green Device operating normally.
Flashing red Recoverable fault.
Red Unrecoverable fault – may require device
replacement.
LINK 1 LINK 2
Link
status
indicator
Auxiliary power
status indicator
Module
status
indicator
44945
Input
status
indicators
Link
status
indicator
Network
status
indicator
Input status
indicators
