52 Module Features
You can inhibit your module on the Connection tab in RSLogix 5000, as
shown in the example.
The following table lists features on the module that cannot be configured.
Module Fault Reporting
Your module provides both a hardware and software indication when a
module fault occurs. The module’s status indicators and RSLogix 5000 display
each fault and include a fault message describing the nature of the fault.
This feature allows you to determine how the fault affects your module and
what action you should take to resume normal operation. For more
information on how to use hardware and software indicators when a module
fault occurs, see Interpret Status Indicators on page 69
and Troubleshoot the
Module on page 69.
Fully Software Configurable
RSLogix 5000 uses a custom, easily understood interface to write
configuration. All module features are enabled or disabled through the I/O
configuration portion of the software.

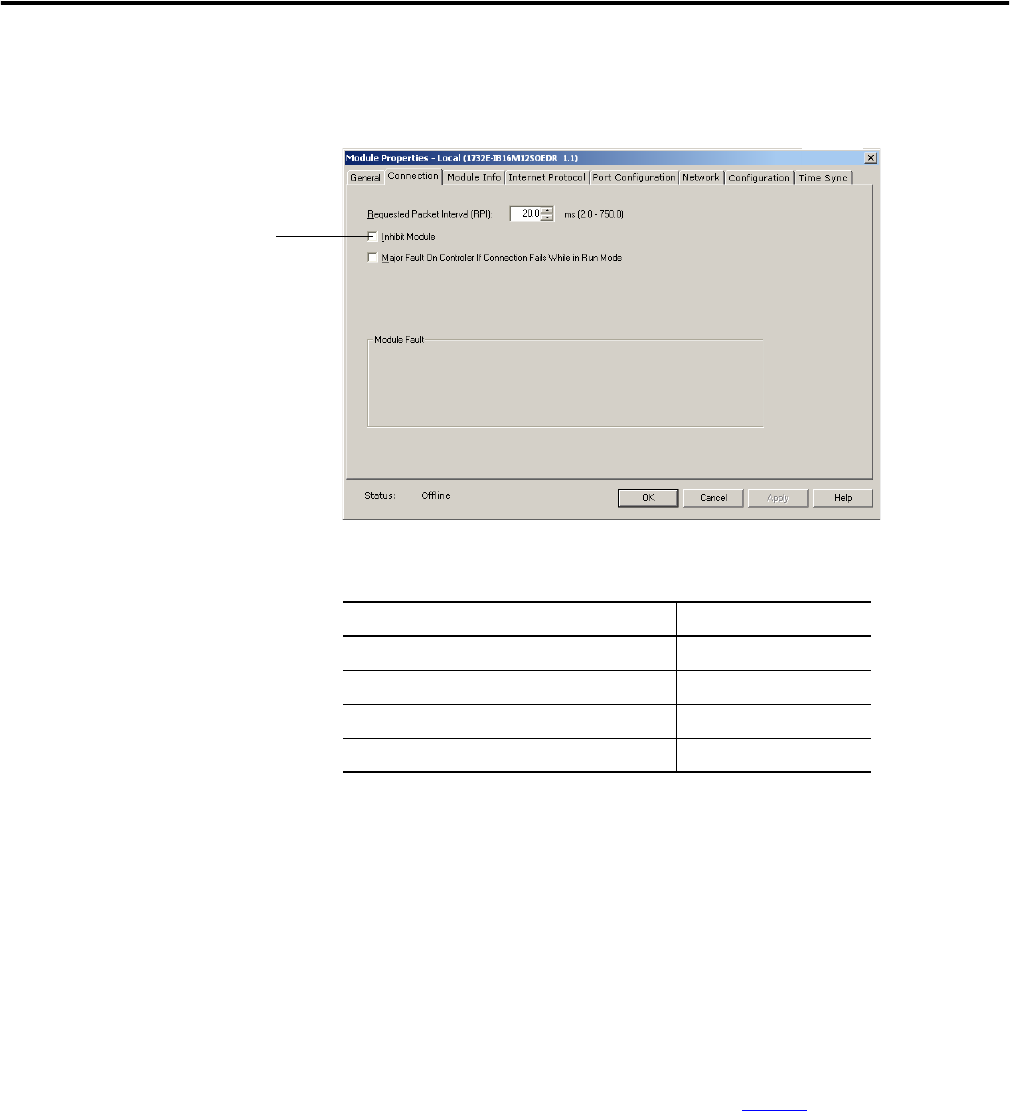

Click on this box to inhibit
or uninhibit the module
This feature: is described on:
Module Fault Reporting 52
Fully Software Configurable 52
Producer/Consumer Model 53
Status Indicator Information 53
