Module Features 49

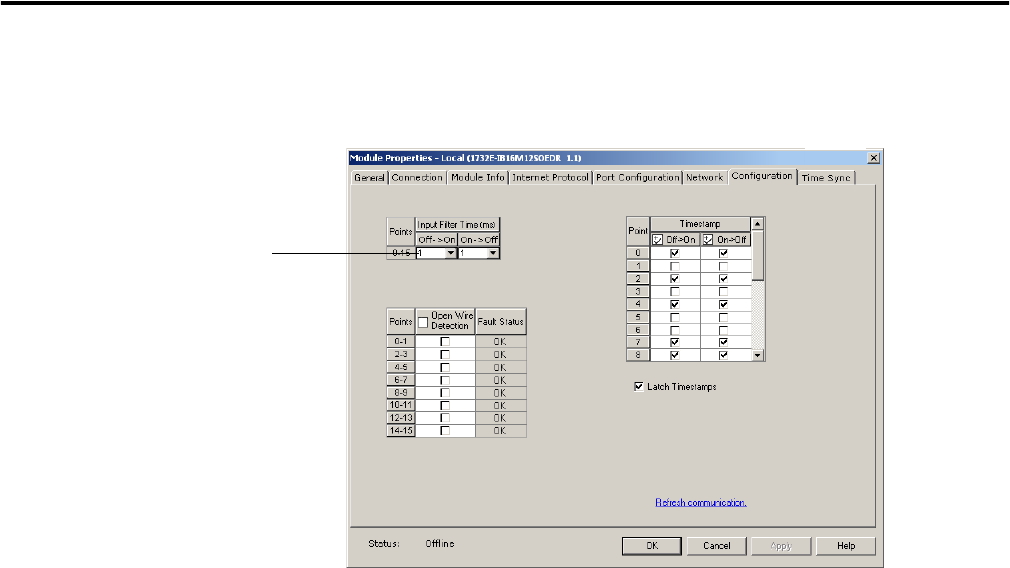

Use the Configuration tab in RSLogix 5000 software to configure Input Filters,
as shown in the example below.
Communications Format
The communications format determines what operational mode your module
uses and, consequently, what tags RSLogix 5000 generates when configuration
is complete. Once a module is created, you cannot change the communications
format unless you delete and recreate the module.
The 1732E-IB16M12SOEDR module can only use Per Point mode as the
communication format.
Electronic Keying
Electronic keying allows the ControlLogix system to control what modules
belong in the configured system.
During module configuration, you must choose one of the following keying
options for your module:
• Exact Match
• Compatible Module
• Disable Keying
Type the filter times or use the
drop down menu to select the
Input Filter Time.
The Input Filter Time range is 0,
1, 2, 4, 8 or 16 ms.
