38 Configure the Module Using RSLogix 5000
The General tab of the Module Properties dialog appears.
Click on the tab of the page that you want to view or reconfigure and make any
appropriate changes, as shown in the example.
Access Module Data in
RSLogix 5000
Use the following information to use the 1732E-IB16M12SOEDR data in the
ladder logic program.
Use the controller tags in your ladder program to read input data or write
output data.
• For RSLogix 5000 programming instructions, refer to RSLogix 5000
Getting Results, publication no. 9399-RLD300GR
.
• For ControlLogix controller information, refer to ControlLogix System
User Manual, publication no. 1756-UM001
.

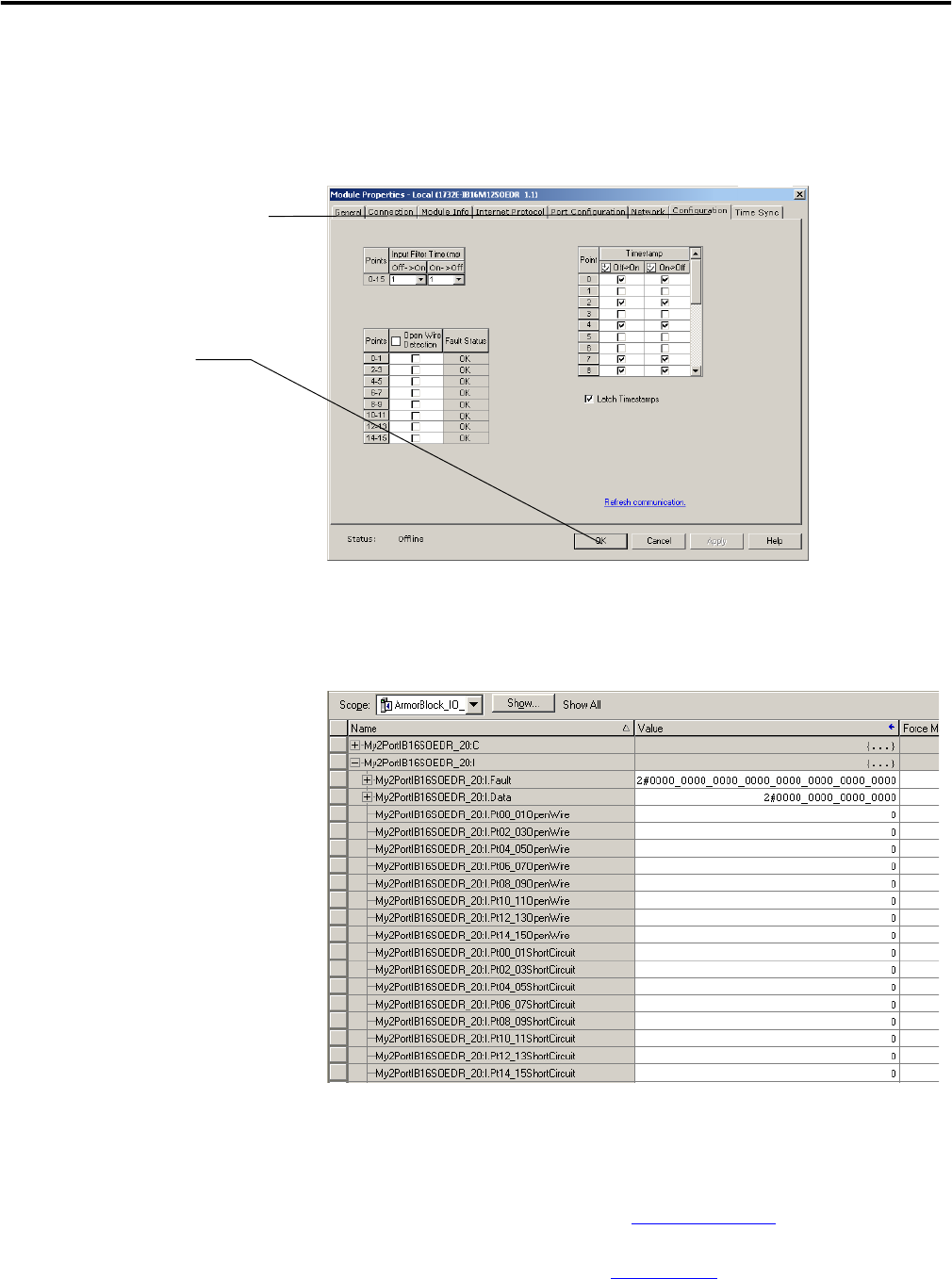

A. Click the tab where you need to
reconfigure the module.
In this example, Timestamp Capture
was disabled for several input
points.
B. When the module is
reconfigured, click OK.
