Configure the Module Using RSLogix 5000 29
Create the
Example Application
Perform the following steps to create the example application:
1. Perform the following steps to create the example application:

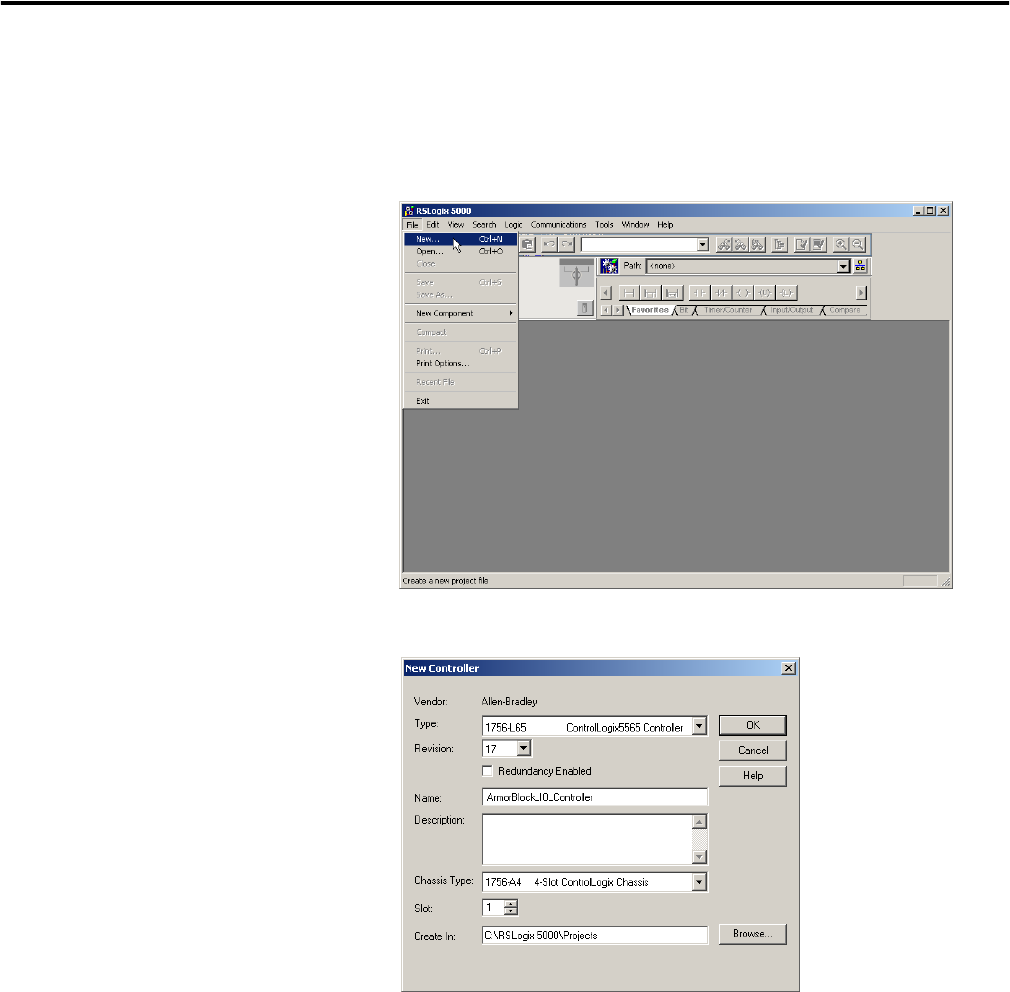

2. From the File menu, select New.
The New Controller dialog opens.
3. Enter an appropriate name for the Controller, for example,
ArmorBlock_IO_Controller.
4. Select the correct version, chassis type, and slot number of the
Logix5565 controller, and the folder where you want to save the
RSLogix 5000 software file (Create In). The Description is optional.
To use redundancy in your system, select the Redundancy Enabled
checkbox.
5. Click OK.
