24 Configure the Module for Your EtherNet/IP Network
Save the Relation List
You can save the Relation List to use later. To save the Relation List do the
following:

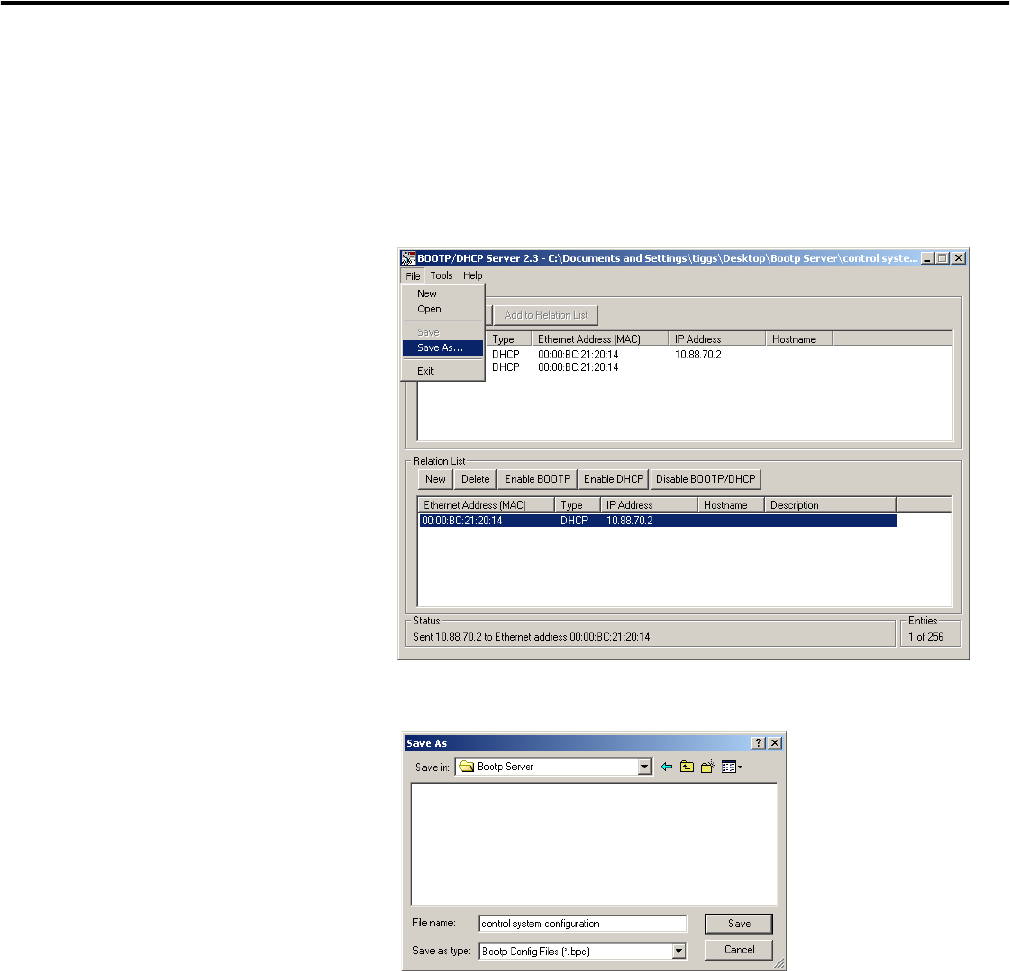

1. Select Save As... from the File menu.
The Save As dialog box appears.
2. Select the folder you want to save the list to.
3. Enter a file name for the Relation List (for example, control system
configuration) and click Save.
If you want to see your saved file names in the Open dialog box, save
your files using the default file type (*.bpc).
Use DHCP Software to
Configure Your Module
Dynamic Host Configuration Protocol (DHCP) software automatically assigns
IP addresses to client stations logging onto a TCP/IP network. DHCP is
based on BootP and maintains some backward compatibility. The main
difference is that BootP was designed for manual configuration, while DHCP
