96 1732E ArmorBlock I/O Embedded Web Server

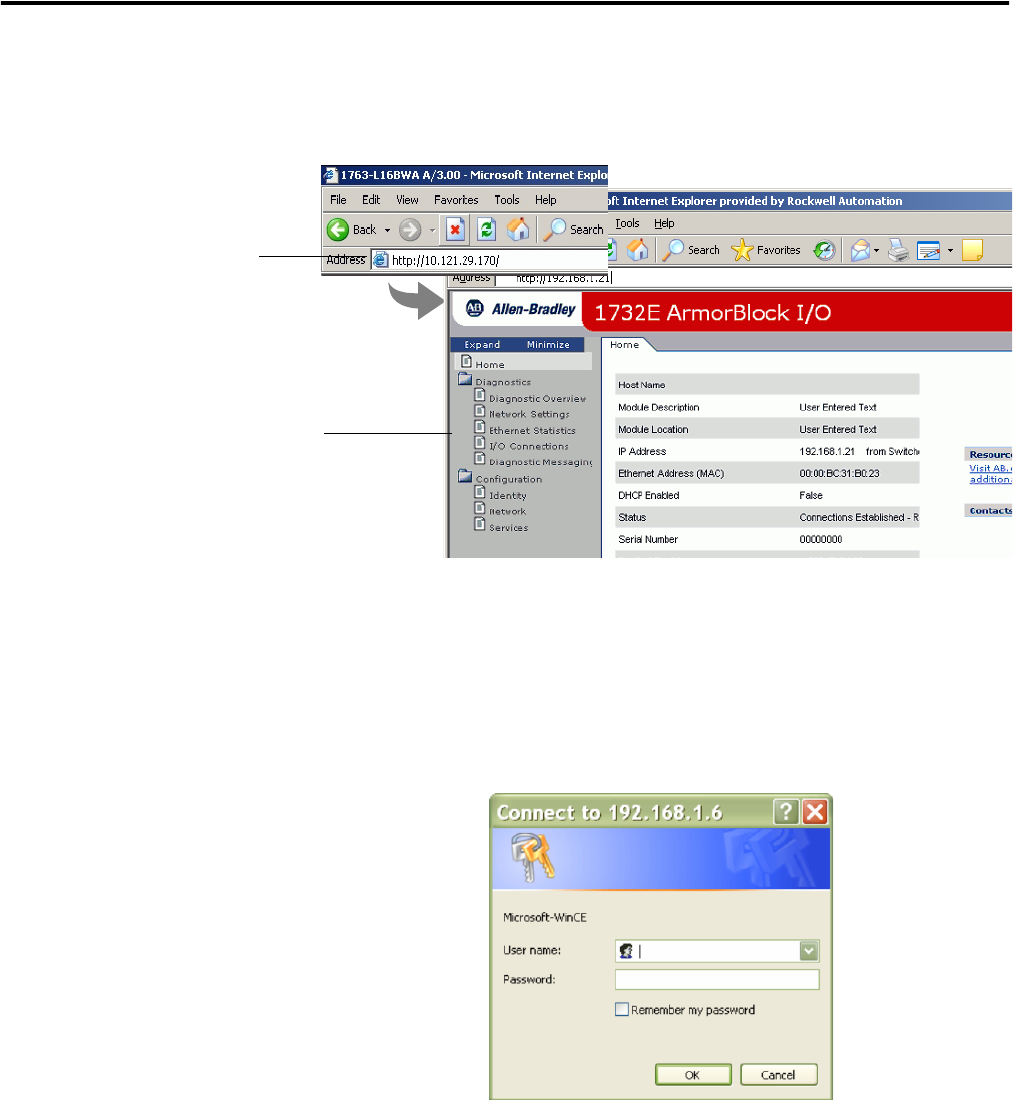

Access the Home Page of
the Web Server
From your web browser, enter the IP address of the 1732E ArmorBlock I/O
module. The module displays its Home page.
Log Into the Web Server
Many of the features of the 1732E ArmorBlock I/O require you to log in with
appropriate access. If you select a feature, such as Configuration, the 1732E
ArmorBlock I/O prompts you to enter your user name and password. The
user name is Administrator. The default password is blank. Both are case
sensitive.
Specify the IP address of the module
in the Address window of your web
browser.
This is the module’s Home page.
Default Access
User Name: Administrator
Password:
