Line Filter Module Specifications

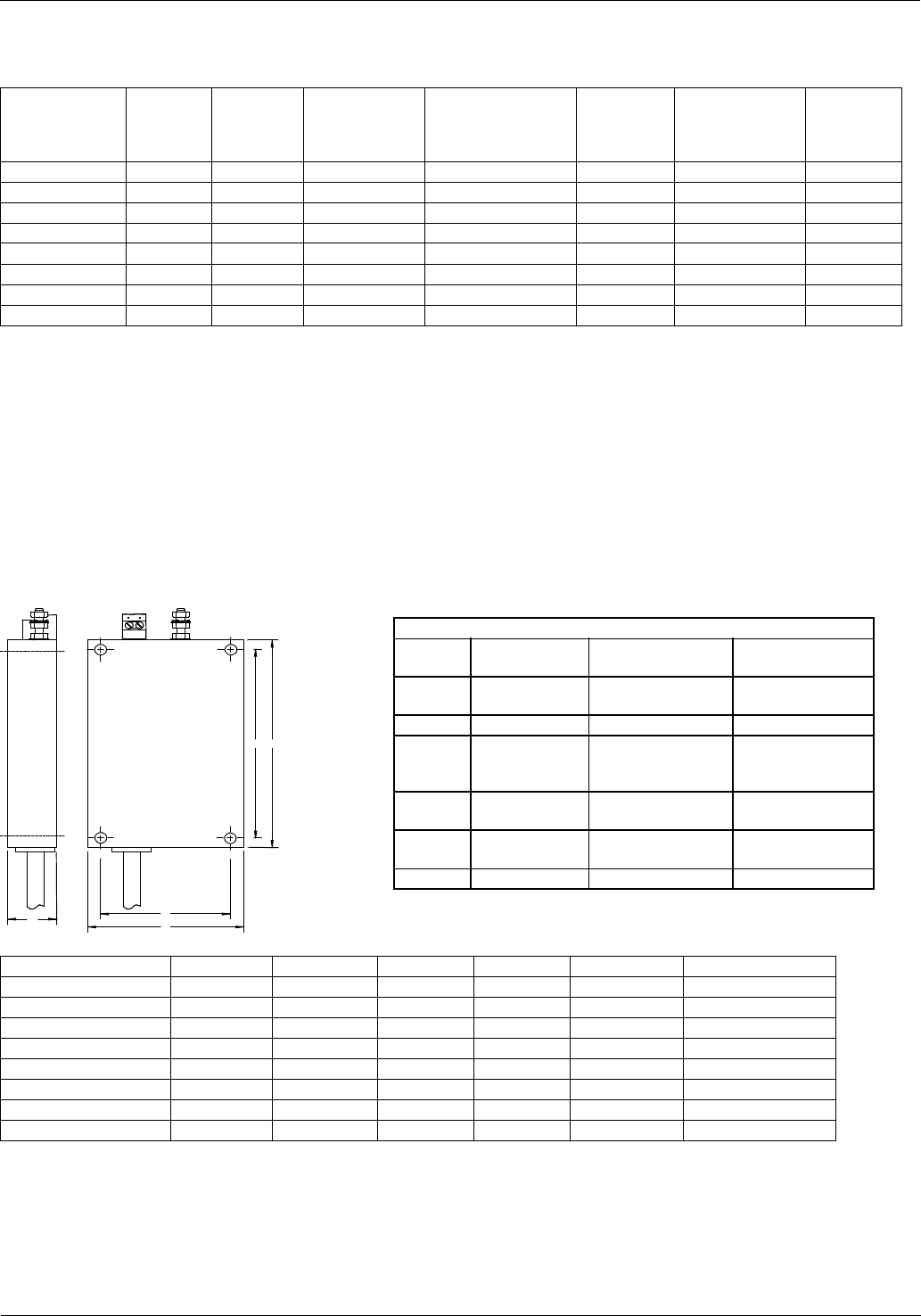

Figure 5.2 Line Filter Module Dimensions [mm (in)]:
Line Filter
Module
Nominal
Vol ta ge
[V]
Nominal
Current
at 40°C [A]
Leakage Current
at 50 Hz (mA)
Test voltage
[VDC for 2s]
ph. to ph;
ph. to grd
Input wire
max. cross
section
[mm
2
(in
2
)]
Output cable
cross section
[mm
2
(in
2
)]
Heat
dissipation
[W]
161S-RFD-10-B 120 +5% 10 A < 3.5 NA 4 (.006) 1.5 (.002) NA
161S-RFD-16-C 120 +5% 16 A < 3.5 NA 4 (.006) 1.5 (.002) NA
161S-RFA-7-A 240 +5% 7 A < 3.5 1400 / 2800 4 (.006) 1.5 (.002) 6
161S-RFA-12-B 240 +5% 12A < 3.5 1400 / 2800 4 (.006) 1.5 (.002) 7
161S-RFA-22-C 240 +5% 22A < 15 1400 / 1400 4 (.006) 2.5 (.004) 9
161-RFA-4-A 240 +5% 4A < 3.5 1400 / 2800 4 (.006) 1.5 (.002) NA
161-RFA-7-B 240 +5% 7A < 3.5 1400 / 2800 4 (.006) 1.5 (.002) NA
161-RFA-20-C 240 +5% 20A < 3.5 1400 / 1400 4 (.006) 2.5 (.004) NA
Current: at 40°C ambient temperature
Overload: 150% I
N
for 10 min
Frequency: 50 / 60 Hz
Material: steel, surface finished
Humidity class: C
Operation height: < 1000 m (3200 ft.) without derating
> 1000 m, I
N
-2%, for each 1000m
Temperature range: -25°C to +85°C
Connections Input terminals IP 20 and PE-screw M5
Load side: cable, unshielded
Line Filter Module A B C D E F
161S-RFD-10-B 130 (5.12) 128 (5.04) 27 (1.06) 118 (4.65) 119 (4.69) 4 x 6 (.24)
161S-RFD-16-C 180 (7.09) 128 (5.04) 27 (1.06) 168 (6.61) 119 (4.69) 4 x 6 (.24)
161S-RFA-7-A 120 (4.72) 80 (3.15) 25 (0.98) 110 (4.33) 67 (2.64) 2 x 6 (.24)
161S-RFA-12-B 130 (5.12) 110 (4.33) 27 (1.06) 118 (4.65) 98 (3.86) 4 x 6 (.24)
161S-RFA-22-C 180 (7.09) 140 (5.51) 29 (1.14) 168 (6.61) 128 (5.04) 4 x 6 (.24)
161-RFA-4-A 120 (4.72) 80 (3.15) 25 (0.98) 110 (4.33) 67 (2.64) 2 x 6 (.24)
161-RFA-7-B 130 (5.12) 110 (4.33) 27 (1.06) 118 (4.65) 98 (3.86) 4 x 6 (.24)
161-RFA-20-C 180 (7.09) 140 (5.51) 29 (1.14) 168 (6.61) 128 (5.04) 4 x 6 (.24)
F
D
A
E
B
C
type 1
Line Filter Selection Guide
Drive
Ratings
Input Voltage
1
Φ
Φ Φ
Φ Series B
Line
Filter Module
3
Φ
Φ Φ
Φ Series B
Line
Filter Module
S-DA01
S-DA02
100V - 120V 161S-RFD-10-B N/A
S-DA04 100V - 120V 161S-RFD-16-C N/A
S-AA01
S-AA02
S-AA03
200V - 240V
200V - 240V
200V - 240V
161S-RFA-7-A 161-RFA-4-A
S-AA04
S-AA05
200V - 240V 161S-RFA-12-B 161-RFA-7-B
S-AA07
S-AA10
200V - 240V 161S-RFA-22-C 161-RFA-20-C
S-AA15 200V - 240V N/A 161-RFA-20-C
